AVIATEK Aircraft Basic Hydraulic System &
Hydraulic Landing Gear System Trainer

Aircraft Tricycle Landing Gear System Trainer AH-30

The AVIATEK Aircraft Tricycle Landing Gear System Trainer, AH-30 is a Trainer System used to illustrates basic operations of tricycle landing gear with steerable nose-wheel which is used by most modern aircraft, as it is easiest to operate on the ground. more detail...

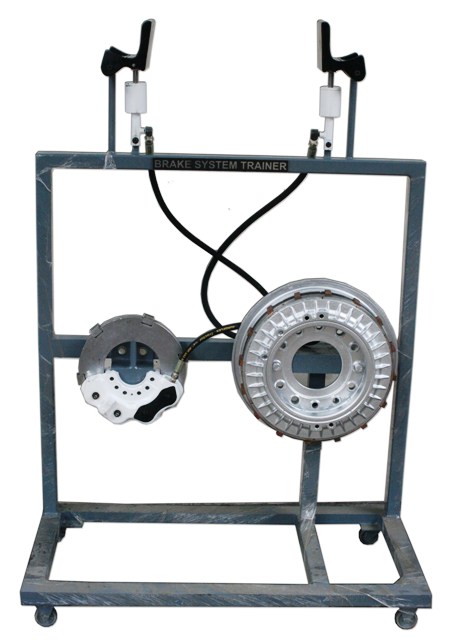

Aircraft Brake System Trainer AH-36

The AVIATEK Aircraft Brake System Trainer AH-36 is a Trainer System used to illustrates basic operations of hydraulic multiple-disk brake system used by Big Jet aircraft and or hydraulic single-disk brake system used by small aircraft. more detail...

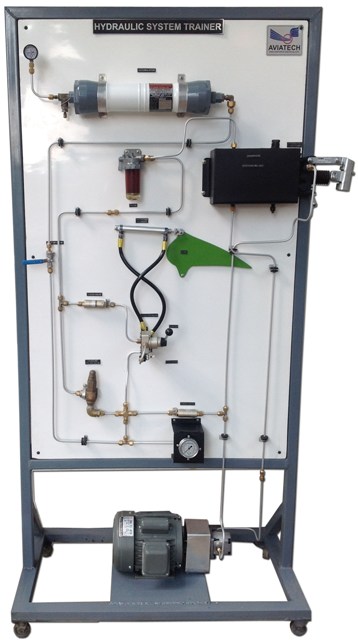

Aircraft Motorized Hydraulic System Trainer, AH-86

The AVIATEK Aircraft Motorized Hydraulic System Trainer, AH-86 is a Trainer System used to illustrates basic operations of motorized hydraulic system installed in most aircraft. There are multiple applications for aircraft hydraulic systems use in aircraft, such as wheel brakes, retractable landing gear. etc. ...more detail...

The AVIATEK Aircraft Fluid Line System Trainer AH-90 is a Trainer System used to illustrates how to install hydraulic fluid lines, fitting or connectors used in aircraft or any fluid line. AH-90 Trainer provides the sample of proper and incorrect fluid lines assembly such as bending  tube and hose.  Provided also with fitting or connections assembly, clamping and installation etc. more detail...

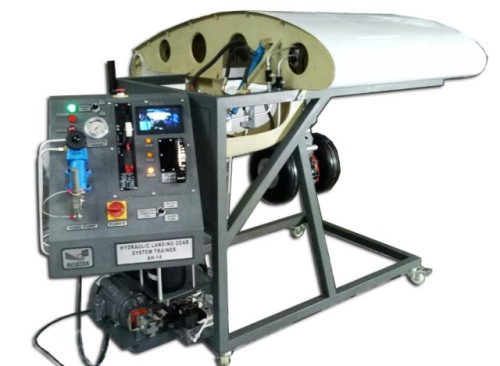

Aircraft Hydraulic Landing Gear Trainer AH-14

The AVIATEK Aircraft Hydraulic Landing Gear Trainer AH-14 is a Trainer System used to illustrates basic operations of hydraulic landing gear system used in most aircraft flying today from small and lightweight to large and heavy aircraft. more detail...

Aircraft Hydraulic Dual Landing Gear Trainer AH-14P

The AVIATEK Aircraft Hydraulic Dual Landing Gear Trainer AH-14P is a Trainer System used to illustrates an integrated, modern and latest operations of hydraulic dual landing gear system used in most large and heavy aircraft flying today. Equipped also with sensors and camera to monitor landing gear movements. more detail...

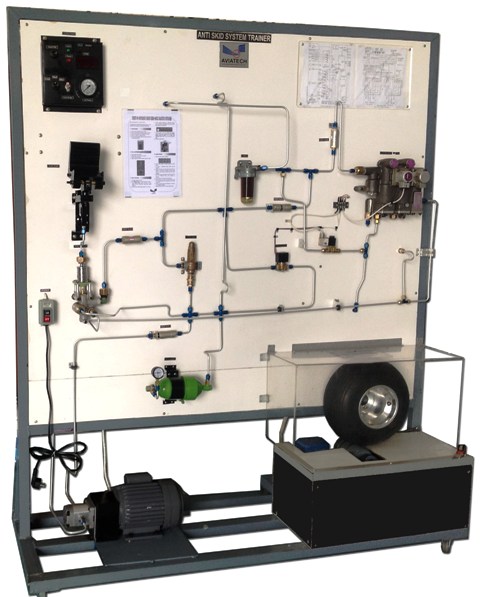

Aircraft Antiskid Braking System Trainer AH-37

The AVIATEK Aircraft Antiskid Braking System Trainer AH-37 is a fully functional Trainer System proposed to illustrates basic operations of anti skid breaking system used by modern executive Jet aircraft for landing in several different runway condition, to fulfill the latest FAA requirements. more detail...


AVIATEK Aircraft Powerplant Trainer

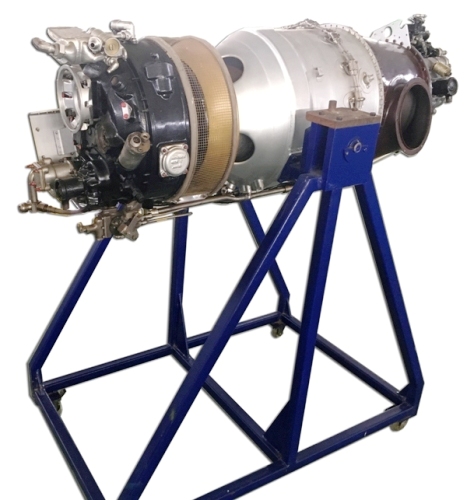

Teardown PT6 Turboprop Engine Trainer AE-08-PT6

Mounted on a maintenance stand, and it is supplied with hot section inspection tools. The AVIATEK teardown PT6A turboprop engine trainer is used for hands-on training for the dis-assembly and re-assembly of engine parts and sections. With the included tools, the students can perform hot section inspection and a thorough familiarization with engine construction and assembly. more detail...

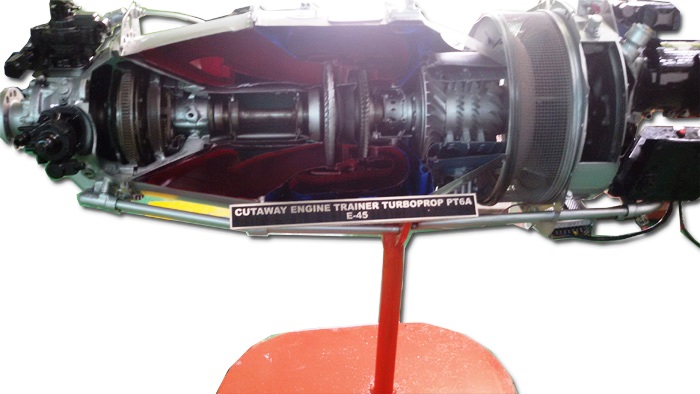

PT6 Piston Engine Cutaway Trainer AE-06-PT6

Motorized with an electric motor to drive the engine shaft, The AVIATEK PT6 Piston Engine Cutaway Trainer AE-06-PT6 is a cutaway with a physical size of PT6A Piston engine, makes it a convenient training aid for introduction and how it works of Piston engine, section and parts. more detail...

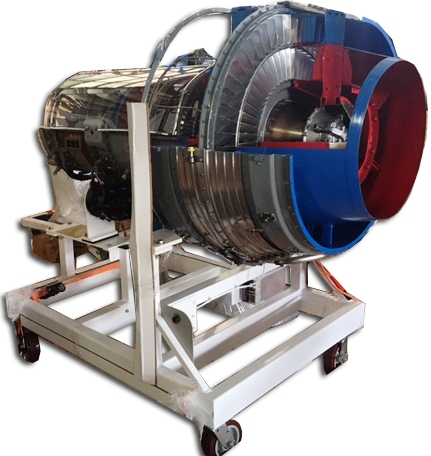

Turbofan CF700 Engine Cutaway Trainer AE-06-700

Motorized with an electric motor and mounted on a roll-around bench-top, The AVIATEK Turbofan CF700 Engine Cutaway Trainer is a cutaway CF700 low bypass turbofan engine with a physical size of CF700 engine compared to turbofan engines of commercial aircraft, makes it a convenient training aid for turbofan engine introduction. more detail...

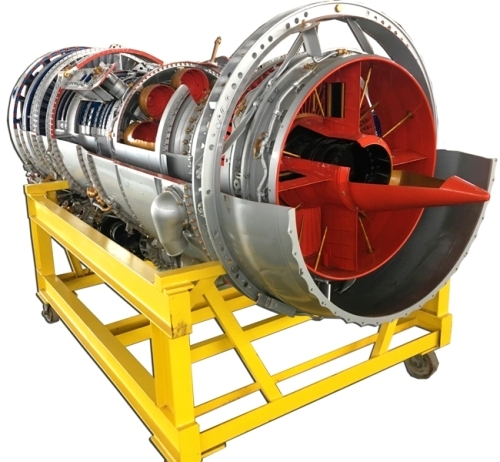

Turbofan Engine JT8D Cutaway Trainer AE-08-JT8

Motorized with an electric motor and mounted on a roll-around bench-top, The AVIATEK Turbofan Engine JT8D Cutaway Trainer is a cutaway JT8D low bypass turbofan non runnable engine with Axial-flow front turbofan (dual-spool), Cross section against ducts, four turbine rotors stages, compressor, combustion chambers, makes it a convenient training aid for turbofan instruction. more detail...

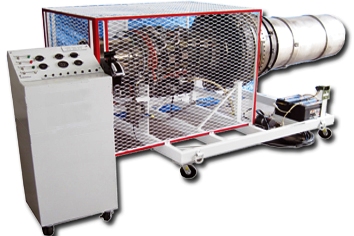

Turbofan CF700 Runnable Engine Trainer AE-20-700

Mounted on a mobile test stand with anchoring points, The AVIATEK Turbofan CF700 Runnable Engine Trainer is a runnable GE CF700 low bypass turbofan engine, equipped with all associated systems, instruments, and accessories that are needed for operation of a turbofan engine. A safety barrier also included to protects the engine intake area to avoid any accidents. more detail...

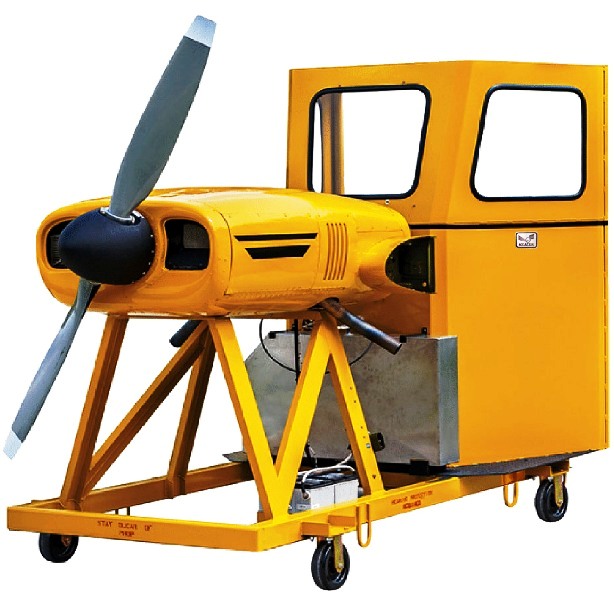

Piston IO-520 Runnable Engine Trainer AE-20-520

Mounted on a mobile test stand with anchoring points, The AVIATEK Piston IO-520 Runnable Engine Trainer is a runnable Continental IO 520 Piston engine, equipped with all associated systems, electrical, blades, instruments, and accessories that are needed for operation of a piston engine. A safety barrier also included to protects the blades area to avoid any accidents. more detail...

AVIATEK Aircraft Fuel System &
Air System Trainer

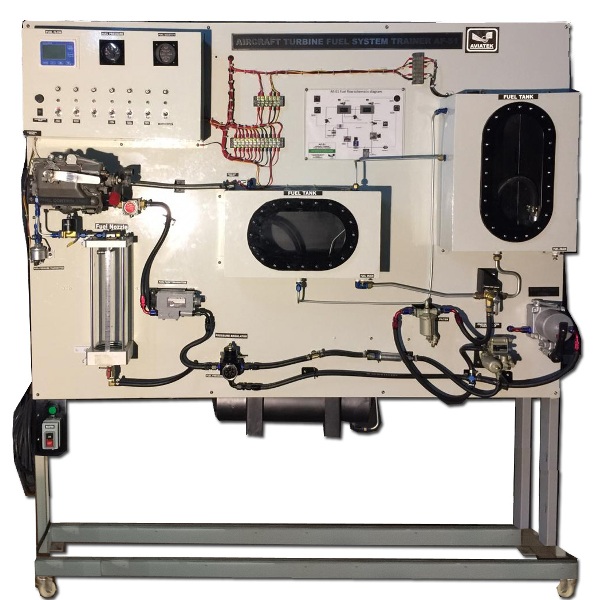

Aircraft Turbine Fuel System Trainer AF-51

The AVIATEK Aircraft Turbine Fuel System Trainer AF-51 is a functional Trainer system that features a fuel management panel, fuel transfer system, and fuel quantity indication system. The unit is fully plumbed from main and auxiliary fuel tanks through turbine FCU section with throttle and combustion chamber to quantity/pressure indicators. An instructor’s panel allows induced system malfunction for troubleshooting. more detail...

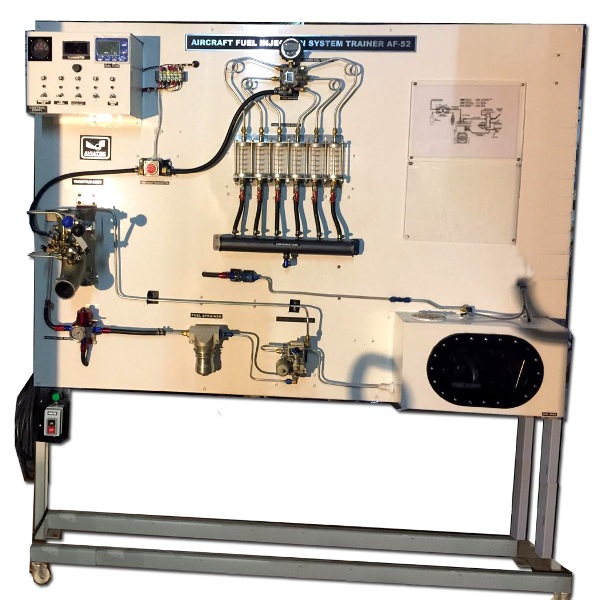

Aircraft Fuel Injection System Trainer AF-52

The AVIATEK Aircraft Fuel Injection System Trainer AF-52 is a Trainer System used to illustrates the operation of fuel injection system and it's component found on many piston aircraft, start from fuel tank, fuel injector pump, fuel injectors, gascolator, and also fuel sensors and instruments, including fuel level, fuel pressure etc. Instructor’s panel in the back of the panel will allows the induction of various faults and errors are which the allow the students to locate, identify and to determine a remedial action to fix the problem. more detail...

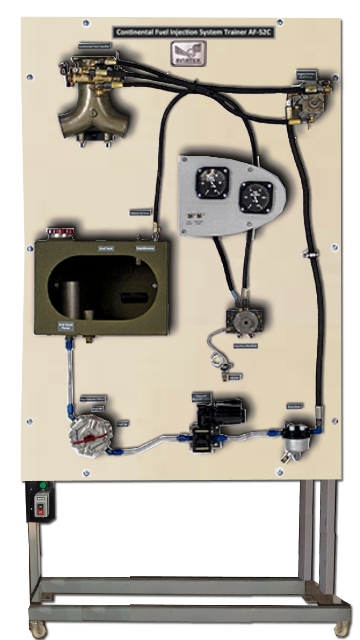

Continental Fuel Injection System Trainer AF-52C

The AVIATEK Continental Fuel Injection System Trainer AF-52C is a Trainer System used to illustrates the operation of The Teledyne Continental (TCM) Fuel Injection System. It contains all components from the fuel tank through the throttle assembly / fuel injection pump to the fuel quantity gauge. Gascolator, valves and manifold assembly are included to show a complete system. Instructor’s panel in the back of the panel will allows the induction of various faults and errors for troubleshooting. The trainer is mounted on a stand with caster wheels and brakes. more detail...

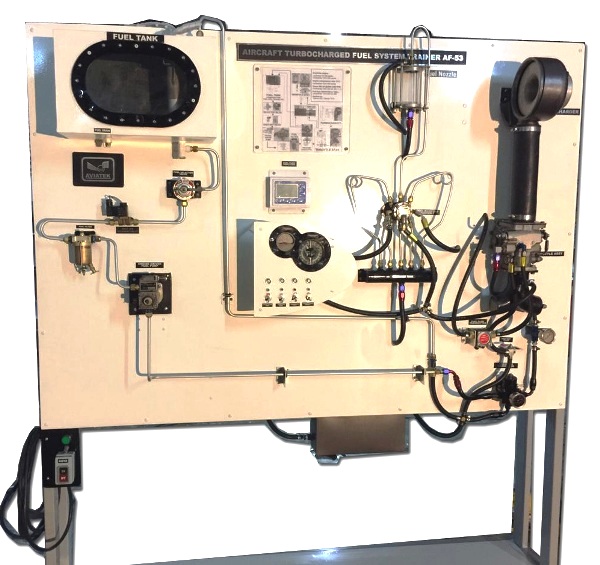

Aircraft Turbocharged Fuel Injection System Trainer AF-53

The AVIATEK Aircraft Turbocharged Fuel System Trainer AF-53 is equipped with a complete Fuel flow assembly to simulate fuel flow installed in aircraft turbocharged engine including plumbed fuel lines using both fixed and flexible fuel lines which is layed from fuel tank to fuel stainer, fuel pump, fuel control unit, turbocharger to fuel injector. Fuel flow instruments and indicator allow students and user to check fuel system conditions during operations. more detail...

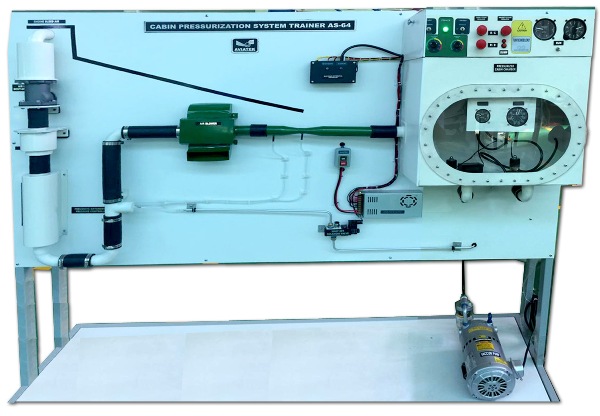

Aircraft Cabin Pressure System Trainer AS-64

The AVIATEK Aircraft Cabin Pressure System Trainer AS-64 is a Trainer System used to illustrate concept and operations of Cabin atmosphere control / cabin pressurization system used by modern Jet passenger aircraft, start with air inlet, bleed air, heat exchager, cabin pressurization, outlet valve and air dump valve up to pressure diffential controller. Completed with crew and passenger oxygen drop down mask to be dropped if the cabin pressure is drop lower than a certain condition in a certain period. more detail...

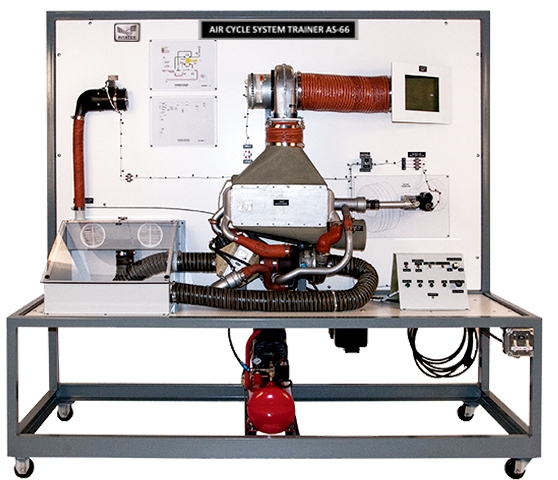

Aircraft Air Cycle System Trainer AS-66

The AVIATEK Aircraft Air Cycle System Trainer AS-66 is a Trainer System used to illustrate basic operations of the Air Cycle (Heat Exchanger) Air Conditioning Training System features a basic turbine air cycle system and shows how it provides cabin climate control. Components include an air cycle machine, heat exchanger, temperature sensor, control valves and a ventilation blower. The air cycle machine is driven by simulated turbine-engine bleed air. Unit can provide system faults through an instructor panel. more detail...


AVIATEK Aircraft Electrical System &
Wiring Practice Trainer

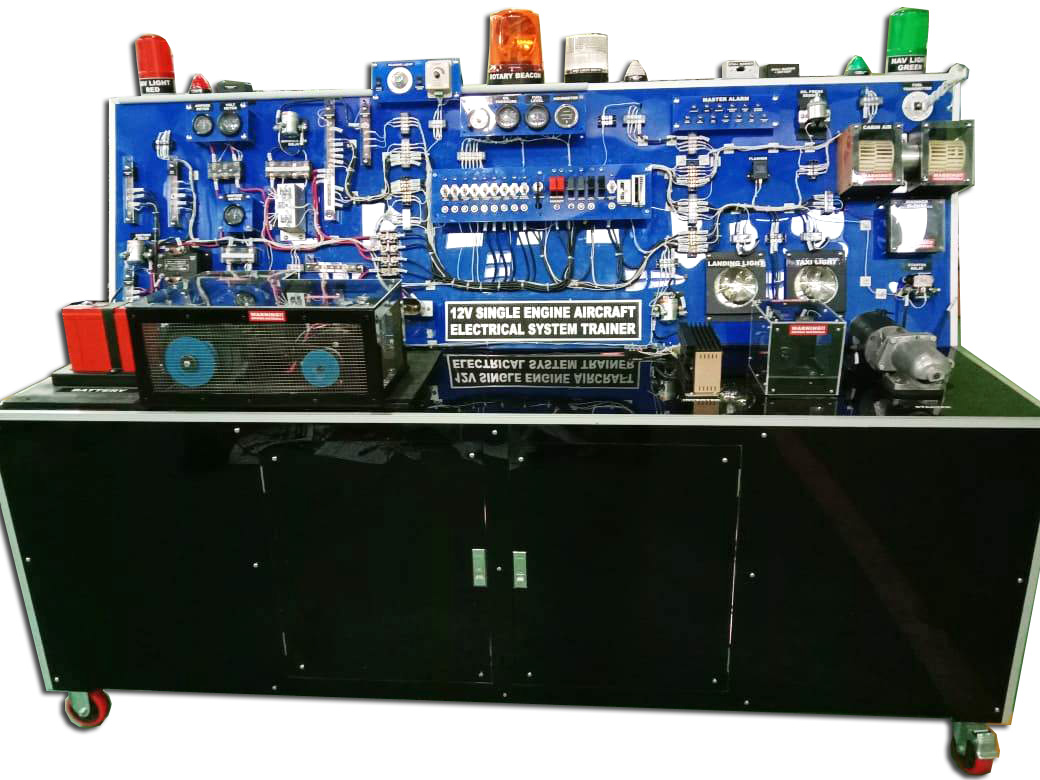

Aircraft 12V Electrical System Trainer AE42-12G

The AVIATEK 12V Aircraft Electrical System Trainer AE42-12G is a Trainer System to simulate 12 Volt Electrical System installed in a private or small single engine aircraft such as Cessna 172. Student will learn start from Primary power source, engine driven power generator system (using alternator or generator), distribution buses up to the loads such as starter and lighting. Provided also with typical cockpit panel for gauges, switches and circuit breakers etc. Instructor may insert faults in one or more equipments through instructor/fault panel. more detail...


Aircraft 28V Electrical System Trainer (with Generator) AE42-24G

The AVIATEK 28V Aircraft Electrical System Trainer (with Generator) AE42-24G is a complete and fully functional Trainer System proposed to simulate 24 Volt Electrical System installed in a light single engine modern aircraft flying today. Student may learn in detail start from Battery, Engine driven Generator System, Distribution Buses and distribution terminals up to electrical loads such as starter and lighting, etc. Provided also with cockpit panel for indicators, switches and Circuit Breakers etc. Instructor may insert faults in one or more equipments throught instructor/fault panel. more detail...

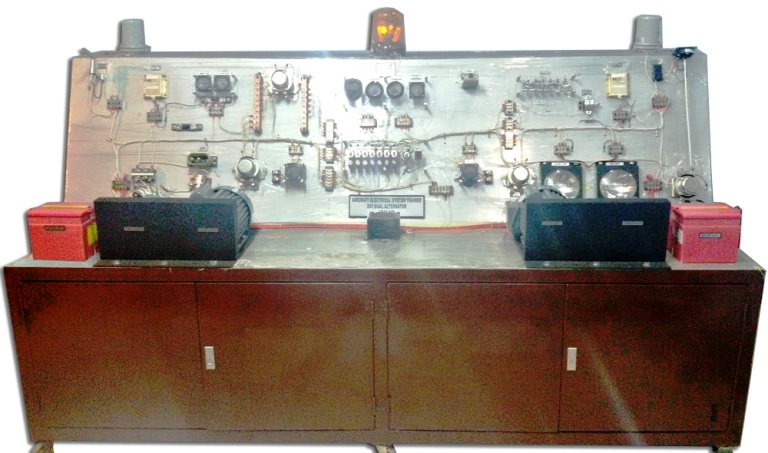

Aircraft 28V Electrical System Trainer (with dual Alternator) AE42-24D

The AVIATEK 28V Aircraft Electrical System Trainer (with dual Alternator) AE42-24D is a Trainer System proposed to simulate 28 Volt Electrical System installed in a modern multi engine aircraft. The Trainer is provided with dual aircraft battery, dual alternator driven by dual electrical motor, Primary bus, Avionics bus, distribution terminal, AC Bus with inverter up to electrical load including starter, lighting and avionics load, etc. Student my practice the control through typical cockpit panel consist of indicators, switches and Circuit Breakers. Instructor may insert faults in one or more equipments through instructor/fault panel. more detail...


Aircraft 28V Dual Turbine Electrical System Trainer AE42-D28G

The AVIATEK 28V Dual Turbine Aircraft Electrical System Trainer AE42-D28G is a complete and fully functional Trainer System proposed to simulate 28V Electrical System typical in modern multi engine commuter, executive turbo prop and jet aircraft. Student learn in detail primary power source, engine driven power source with alterator or generator, Primary Bus, Avionics Bus, Aux Bus, AC Bus, distribution terminal, electrical load such as starter, lighting, pitot, transmitter/indicator through a typical control panel contain indicator, switches and circuit breakers. Student may experience one or more equipment fault inserted through instructor / fault panel. more detail...

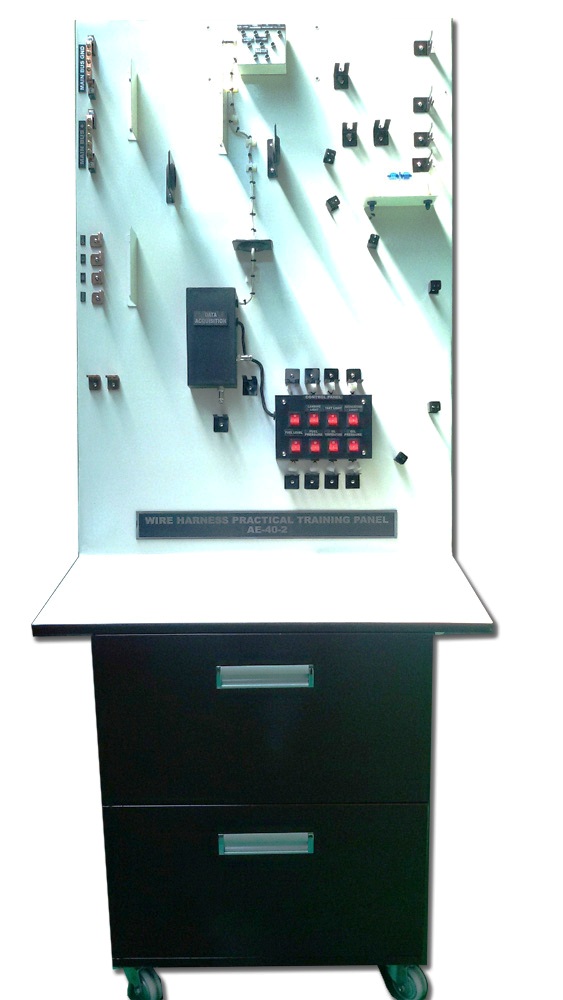

Wire Harness Practical Trainer AE-40-2

The AVIATEK Wire Harness Practical Trainer AE-40-2 is a Trainer provides hands-on practice to students for fabricating, installing, and reapiring aircraft wire harness. The exercises are designed to provide training that would prepare the steudents to comply with FAA AC43-13 and EASA Part 66 Module 7 requirements. The panel allows preparation and routing between two points on the panel while following the standard and approved aircraft maintenance practices. The trainer allows learning of Wire Routing Techniques through holes, bulkheads, floors, hot/engine area, fuel area or structural members. The consumables will need replenishment for regular use. more detail...

AVIATEK Aircraft Avionics & Instruments Trainer

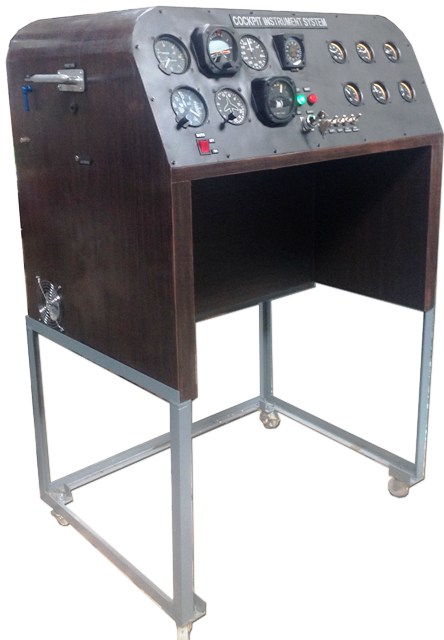

Aircraft Cockpit Instrumentation System Trainer AS-76

The AVIATEK Aircraft Cockpit Instrumentation System Trainer AS-76 is a Trainer System completed with functional simulator system used to illustrates basic operations of Cockpit Instrumentation and Engine Instrumentation used in common aircraft such as altitude indicator, airspeed indicator, rate-of-climb indicator, directional indicator for flight instruments and oil temperature, oil pressure, fuel level etc for engine instruments. Come with completely plumbed and functional, the trainer is delivered ready to operate. more detail...

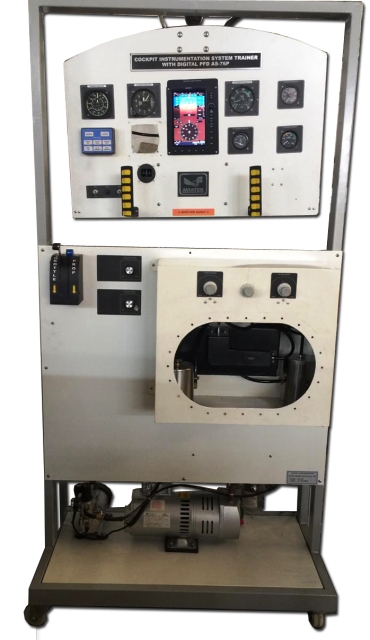

Cockpit Instrumentation System Trainer with PFD AS-76P

The AVIATEK Cockpit Instrumentation System Trainer with Digital PFD AS-76P with a digital, flat-panel PFD is a complete, functional simulator Trainer System used to illustrates ad introduce of use and operation of digital, flat-panel Primary Flight Displays as modern digital Cockpit Instrumentation and Engine Instrumentation used in most latest aircraft aside of coventional flight and engine instruments / gauges. All of the systems are completely plumbed and functional and the trainer is delivered ready to operate. This trainer is well suited to demostrate the migration of conventional cockpit and engine instruments to the modern digital cockpit and engine instruments using digital PFD more detail...

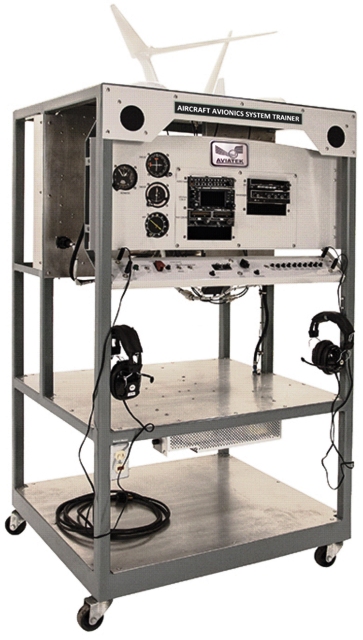

Aircraft Avionics System Trainer AV-22

The AVIATEK Aircraft Avionics System Trainer AV-22 is designed to provide hands-on practical and operations of aircraft electronics avionics system. The system includes a complete electronic Instrument Flight Rules (IFR) avionics package with fully functional components. An instructor’s panel enables the induction of airframe system faults. more detail...

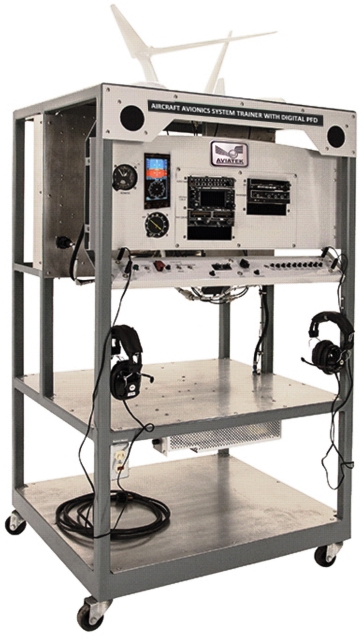

Aircraft Avionics System Trainer with Digital PFD AV-22P

The AVIATEK Aircraft Avionics System Trainer with Digital PFD is to provide hands-on practical and operations of aircraft electronics avionics system with introduction of a modern glass panel digital primary flight display (digital PFD). This trainer is well suited to be a bridge of electronic Instrument Flight Rules (IFR) avionics and introduction to the digital primary flight display. An instructor’s panel enables the induction of airframe system faults. more detail...

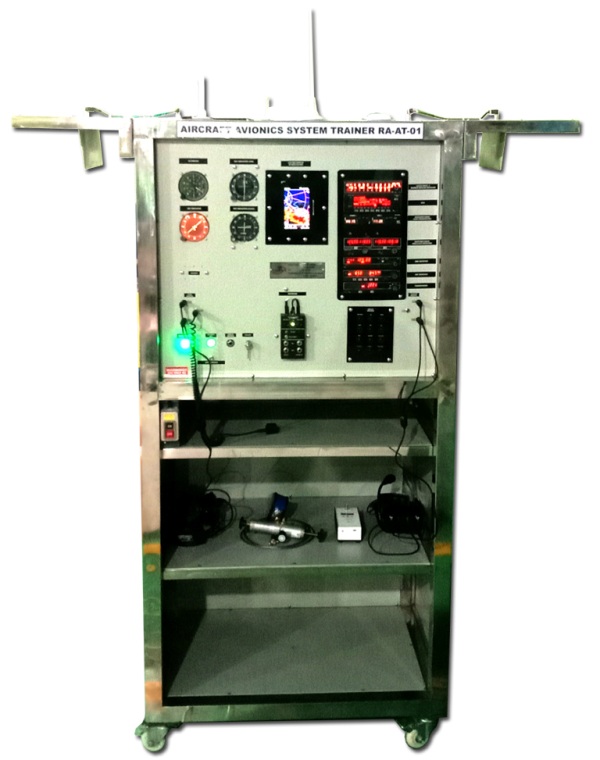

Aircraft Avionics System Trainer AT-01

The AVIATEK AT-01 Aircraft Avionics System Trainer brings the real life experience to the classroom. The trainer provides practical, hands-on training using the real avionics equipment configured and wired just like an airworthy aircraft. The trainer is designed to give the students a good understanding aircraft equipment. Student also develop logical methodical to troublehoot avionics faults inserted by the instructor. The trainer is mounted on a moveable stand and comes complete with all wiring, antennas, transmitter, receiver, indicators and also instructor and students manuals. more detail...

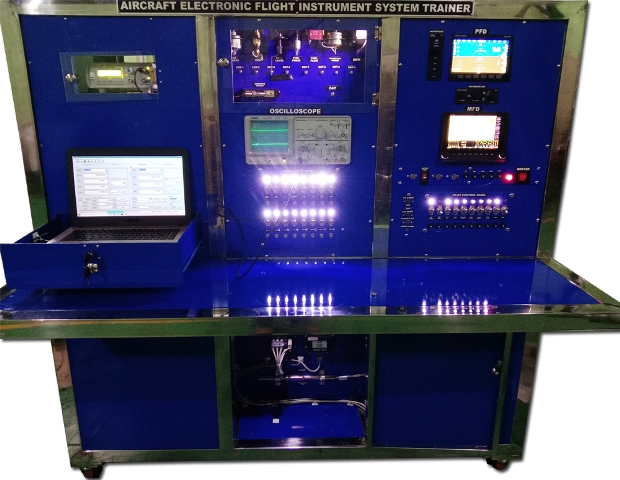

Aircraft Electronic Flight Instruments System Trainer AV-18

The AVIATEK Electronic Flight Instruments System Trainer AV-18 or EFIS System Trainer is intended for operations of the modern digital aircraft electronic flight instrument systems. It features modern flight instruments display (PFD), moving maps and engine instruments display (MFD). It is visualized in 7 inch high resolution display. It comes complete, tested and ready to operate including a fault panel for the instructor. PC Based simulator and oscilloscope will allow student and user to study more advanced on output sensors and signal fed to the digital PFD and MFD. more detail...


AVIATEK Helicopter Maintenance Trainer

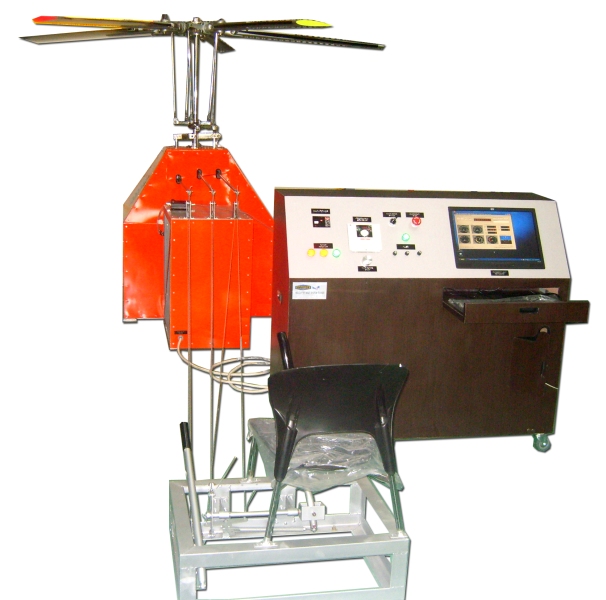

Helicopter Main Mast System Trainer HS-11

The Aviatek Helicopter Main Mast System Trainer HS-11 is a trainer system used for lab technician training students of aircraft / helicopters with basic studies of operation and maintenance (including replacement) of Helicopter Main Mast System including the swash plate, pitch link, rotor hub, drag damper, rotor blade, blade tracking and blade balancing. The operation and maintenance is including also replacement and installation of Rotor Blade and Blade Pitch Setting. PC Based data acquisition is to allow from time to time to check and monitor rotor speed and also vibration measurement. more detail...

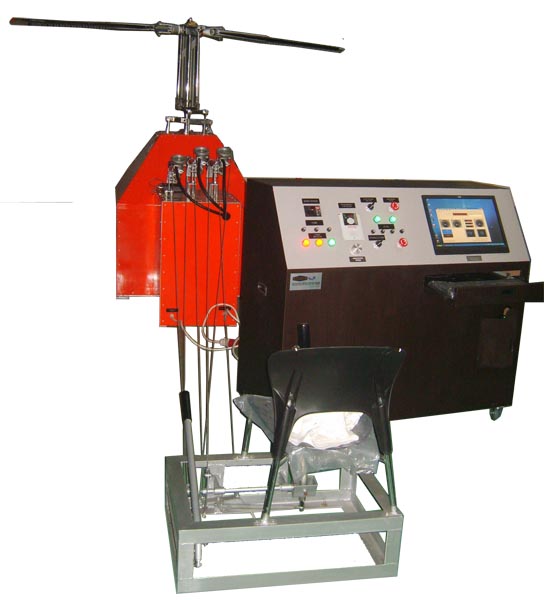

Helicopter Hydraulic Main Rotor System Trainer HS-41

The Aviatek Helicopter Hydraulic Main Rotor System Trainer HS-41 is a trainer system used for lab technician training students of aircraft / helicopters with basic studies operation ad maintenace of Hydraulic System Control of Helicopter Main Rotor which includes Hydraulic Pump, Accumulator, Control Valves, Pressure Gauge, Hydraulic Lines and Hydraulic Actuator. The operation and maintenance is including also replacement and installation of Hydraulic Pump, Accumulator, Actuator, Hydraulic Lines and Hydraulic Fluid, Hydraulic Pressure Measurement, Pitch Control Settings. PC Based data acquisition is to allow from time to time to check to monitor rotor speed and also hydraulic system measurement. more detail...

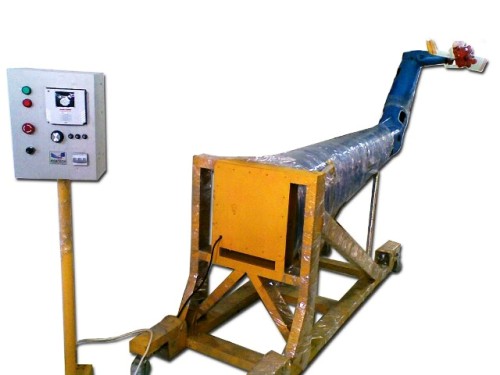

Helicopter Tail Rotor System Trainer HS-23

Equipped with electronic speed control, The AVIATEK Helicopter Tail Rotor System Trainer HS-23 is a Trainer System used to illustrate the concept and operations of the power transmission system in helicopter tail rotor, from the main rotor or the tail rotor powerplant and pitchlink tail rotor control system to the tail blades. It is very important to have helicopter technician to know and understand concept and operation of helicopter tail rotor including vibration of tail rotor and also routine check and maintenance of a helicopter tail rotor. more detail...

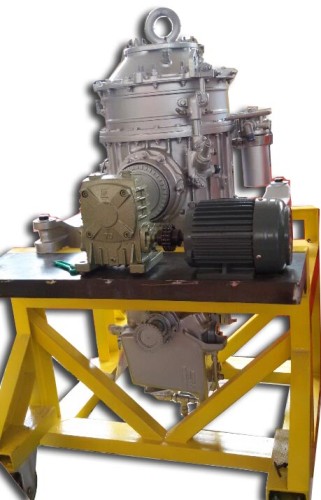

Helicopter Transmission Gearbox Trainer HS-24

The AVIATEK Helicopter Transmission Gearbox Trainer HS-24 is a Trainer System used to illustrate the concept of a helicopter transmission gearbox, i.e. a mechanism to get the engine output (i.e. torque at a certain angular velocity) and transmit it to the main rotor at the top of helicopter and also at the same time to tail rotor at the back of helicopter with a freewheeling unit and clutch. Operation and maintenance including check and maintenance of oil system. more detail...

AVIATEK Aircraft Propellers & Magneto System Trainer

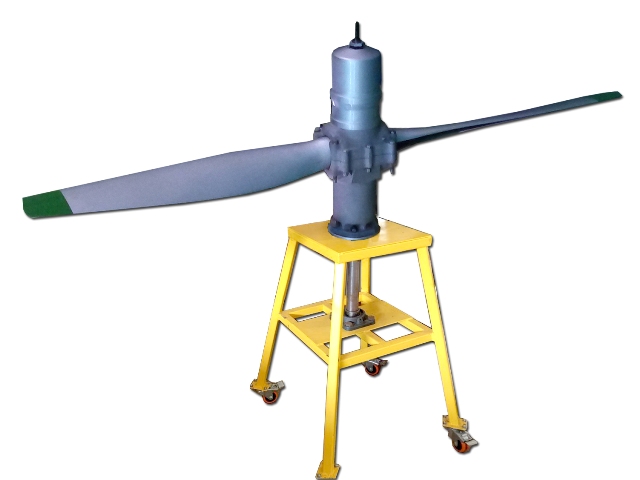

Hamilton Two Bladed 22D30 Propeller P06-02-HM

The AVIATEK Hamilton Two Bladed 22D30 Propeller P06-02-HM is a compact way to teach Hydromatic propeller operation. In the early 1930s Frank W. Caldwell of Hamilton Standard led a team that developed a variable-pitch propeller, using hydraulic pressure and centrifugal force to change the angle of attack of the blades. At the time, Hamilton was the largest manufacturer of aircraft propellers in the world. more detail...

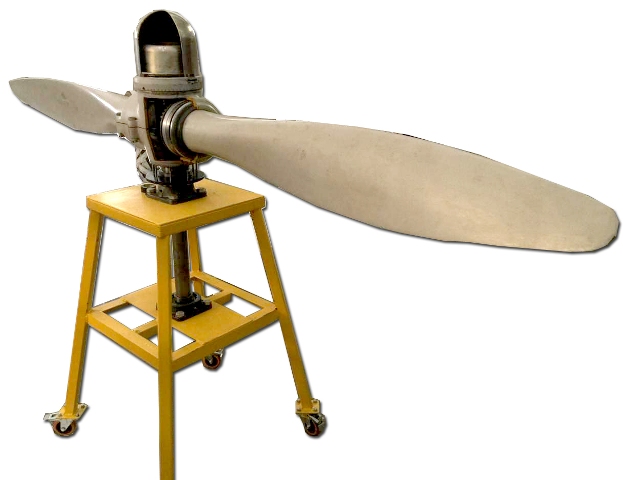

Hartzel Two Bladed Propeller P06-02-HZ

With over 30 years of experience in the design and manufacturing of structural composite blades, Hartzell introduced the second generation Advance Structural Composite (ASC-II) blade in 2006. Several certified OEM airframe manufacturers have selected the ASC-II blade as standard equipment because of the low weight, low inertia, and low life cycle costs that it offers their customers.

The Hartzell ASC-II consists of a unique monocoque structure of advanced composite materials. The structure consists of carbon fiber laminates integrated into a co-molded stainless steel shank. The outboard half of the leading edge is protected with a co-molded electroformed nickel erosion shield. more detail...


Aircraft Magneto Bench Test Trainer S-2

The Aviatek Magneto Test Bench can be used to test functionality of most Bendix and Slick magnetos. It features a variable-speed drive motor with a solid-state speed controller and tachometer. The unit is reversible and can be used to test both right and left hand drive magnetos. It is mounted on a roll-around cabinet with two lockable compartments with caster wheel and brakes. more detail...
