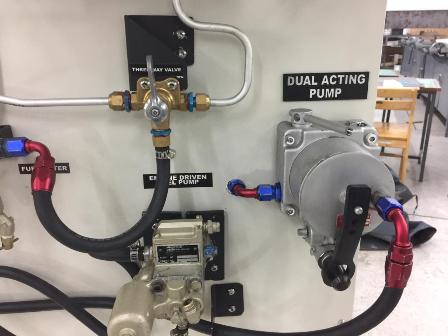

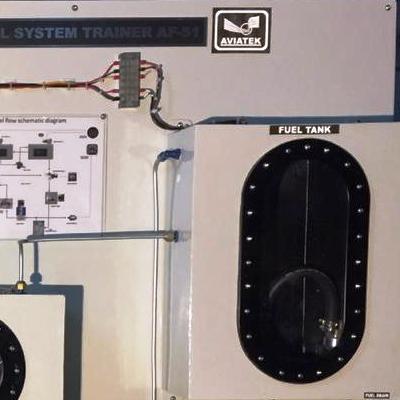

Aircraft Turbine Fuel System Trainer AF-51

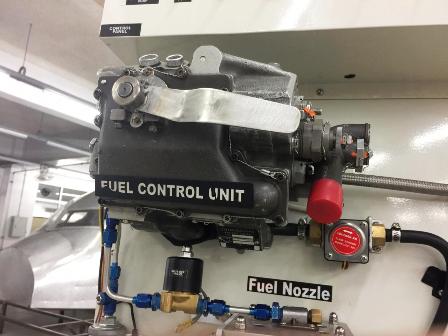

The AVIATEK Aircraft Turbine Fuel System Trainer AF-51 is a functional Trainer system that features a fuel management panel, fuel transfer system, and fuel quantity indication system. The unit is fully plumbed from main and auxiliary fuel tanks through turbine FCU section with throttle and combustion chamber to quantity/pressure indicators. An instructor’s panel allows induced system malfunction for troubleshooting. The unit is delivered fully assembled, tested and ready to operate.

Features

  • Fully functional and configured like a typical turbine engine aircraft fuel system.
  • Instructor’s panel for introduction of usual system faults and errors (min. 10 simulated faults)
  • Aircraft hydraulic cylinder (dual acting), sequenced by a sequencing valve.
  • User manual, Instructor Manual and Student lab. practice including wiring diagrams and flow schematic diagram.
  • Includes overhead transparencies and laminated fuel system drawings.
  • Using injection for Aviation Kerosene fuel.
  • 50 liters consumable Aviation Kerosene fuel
  • Mounted on a stand with caster wheels and brakes.
  • Includes CBT (Computer Based Training)
  • Designed with aircraft parts



Components

  • Fuel quantity indicator
  • Fuel quantity sender / transmitter
  • Fuel pressure gauge
  • Electric fuel transfer/boost pump
  • Fuel transfer selector valve
  • Fuel filter
  • Fuel lines both flexible and metal lines
  • Control Panel consist of circuit breakers, switches, indicators and electrical components
  • Main fuel control
  • Main and Aux fuel tank

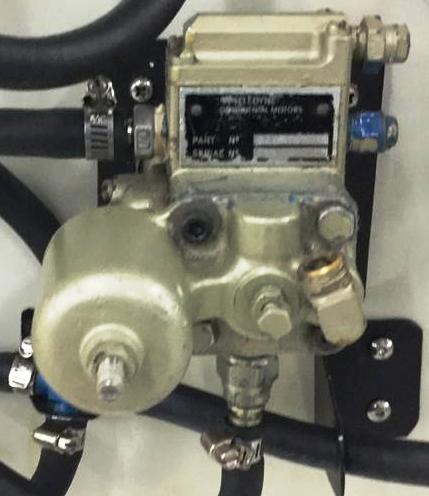

  • Main fuel pump
  • Manifold drain valve

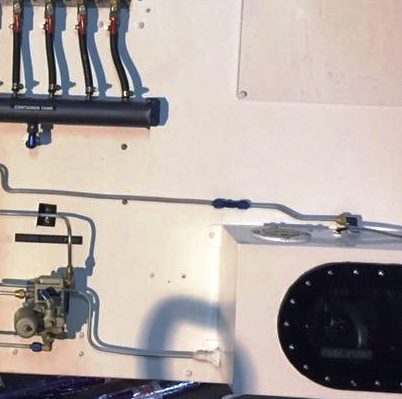

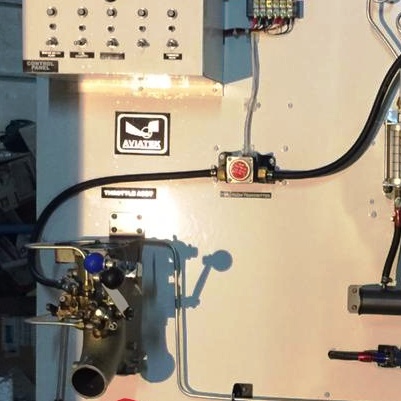

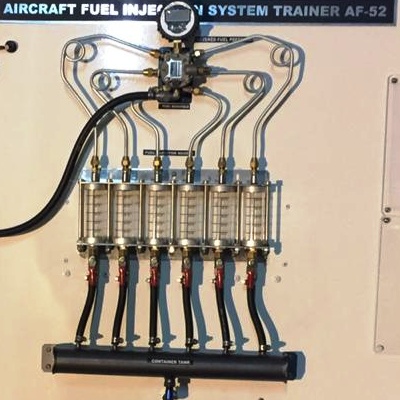

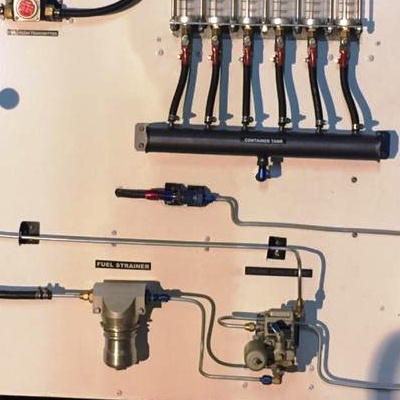

Aircraft Fuel Injection System Trainer AF-52

The AVIATEK Aircraft Fuel Injection System Trainer AF-52 is a Trainer System used to illustrates the operation of fuel injection system and it's component found on many piston aircraft, start from fuel tank, fuel injector pump, fuel injectors, gascolator, and also fuel sensors and instruments, including fuel level, fuel pressure etc. Instructor’s panel in the back of the panel will allows the induction of various faults and errors are which the allow the students to locate, identify and to determine a remedial action to fix the problem.

Features

  • A compact, portable and ready to operate unit to demostrate the operations of Aircraft Fuel Injection System.
  • Perform Operation, servicing, check and mainteance of fuel injection system including fluid lines.
  • Instructor’s panel in the back of the panel for induction of various system faults and errors.
  • User manual, Instructor Manual and Student lab. practice including wiring diagrams and flow schematic diagram.
  • The drain line flow the fuel back to the tank after the testing finished.
  • Includes CBT (Computer Based Training)



Components

  • Fuel Tank (with cap)
  • Vane-Type Fuel Injector Pump
  • Fuel Injectors
  • Gascolator / fuel strainer
  • Fuel lines both flexible and metal lines
  • Fuel pressure indicator (digital)
  • Fuel Quantity Transmitter & Indicator
  • Simulation Controls: Idle, Take-off, Cruise, 2.000 RPM,
  • Throttle.
  • Indicator on Control Panel: Fuel quantity, fuel flow, fuel pressure, engine RPM
  • Control Panel consist of circuit breakers, switches, indicators and electrical components
  • Training stand with caster wheels and brakes.

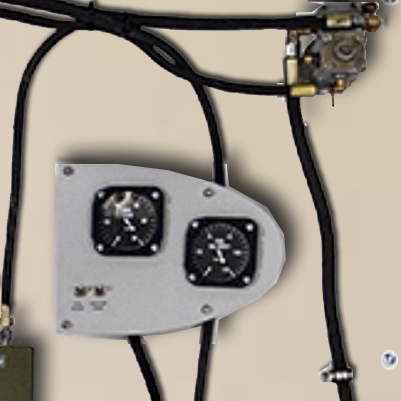

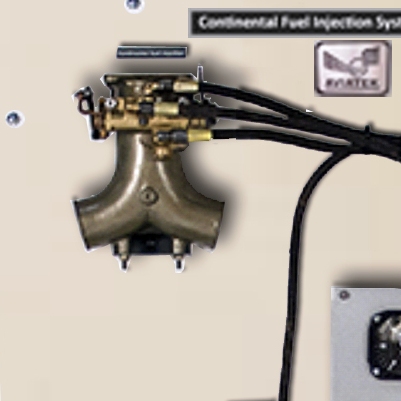

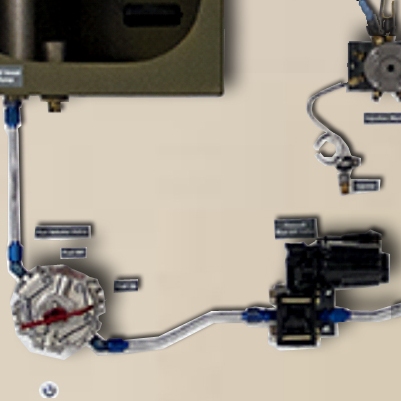

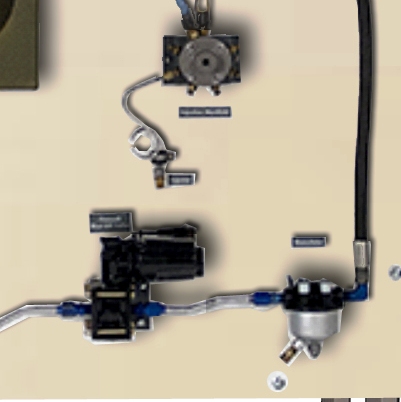

Continental Fuel Injection System Trainer AF-52C

The AVIATEK Continental Fuel Injection System Trainer AF-52C is a Trainer System used to illustrates the operation of The Teledyne Continental (TCM) Fuel Injection System. It contains all components from the fuel tank through the throttle assembly / fuel injection pump to the fuel quantity gauge. Gascolator, valves and manifold assembly are included to show a complete system. Instructor’s panel in the back of the panel will allows the induction of various faults and errors for troubleshooting. The trainer is mounted on a stand with caster wheels and brakes.

Features

  • A compact, portable and ready to operate unit to demostrate the operations of TCM Fuel Injection System.
  • Perform Operation, servicing, check and mainteance of TCM fuel injection system including fluid lines.
  • Instructor’s panel in the back of the panel for induction of various system faults and errors.
  • User manual, Instructor Manual and Student lab. practice including wiring diagrams and flow schematic diagram.
  • Includes CBT (Computer Based Training)



Components

  • Associated plumbing
  • Electric firewall shut-off valve
  • Engine-drive fuel pump
  • Fuel filter
  • Fuel flow indicator
  • Fuel injection pump / TCM throttle assy
  • Fuel quantity indicator
  • Fuel quantity transmitter (float type)
  • Fuel selector valve
  • Fuel tank with cap
  • Gascolator
  • Submerged fuel boost pump
  • Switches (firewall shut-off and boost pump)
  • TCM fuel manifold assy with lines and injectors

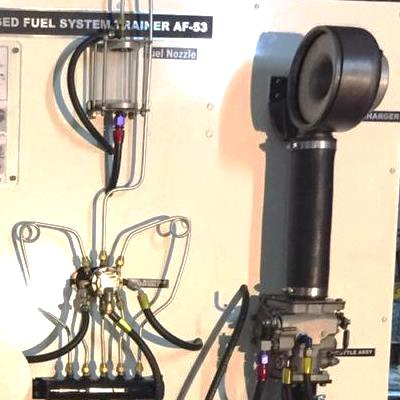

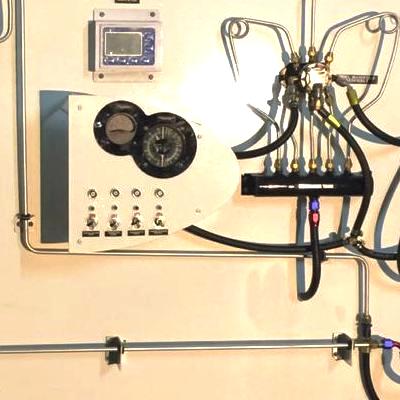

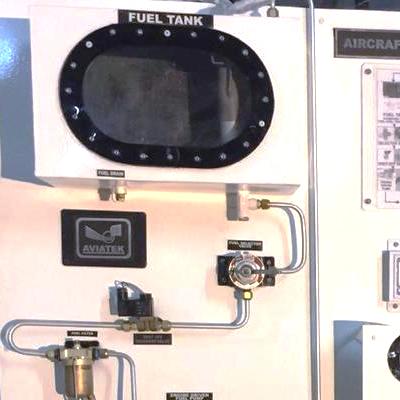

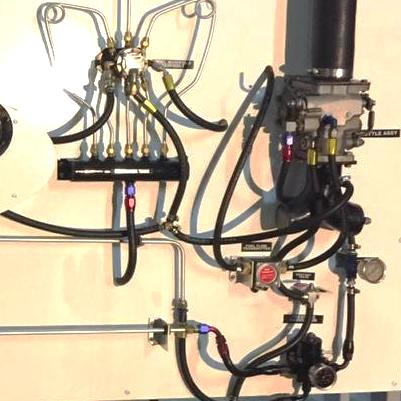

Aircraft Turbocharged Fuel System Trainer AF-53

The AVIATEK Aircraft Turbocharged Fuel System Trainer AF-53 is equipped with a complete Fuel flow assembly to simulate fuel flow installed in aircraft turbocharged engine including plumbed fuel lines using both fixed and flexible fuel lines which is layed from fuel tank to fuel stainer, fuel pump, fuel control unit, turbocharger to fuel injector. Fuel flow instruments and indicator allow students and user to check fuel system conditions during operations.

Features

  • A compact, portable and ready to operate unit to demostrate basic operations of Aircraft Turbocharged Fuel System.
  • Perform Operation, servicing and mainteance of fuel injection system including fuel plumbing.
  • Equipped with 2 (two) fuel pressure measurement to compare the fuel pressure before and after turbocharger.
  • Instructor / User manual including student Lab. Practice.
  • Include interactive CBT
  • Training Stand with caster wheel and brakes


Components

  • Combustion Chamber, engine‐drive fuel pump.
  • Fuel tank, fuel boost pump, fuel filter, fuel pump
  • Fuel control assembly, fuel manifold
  • fuel injector
  • Turbocharger
  • Plumbed fuel lines using both fixed and flexible fuel lines
  • Control Panel including switches, circuit breakers and indicators
  • Fuel Pressure Gauge
  • Fuel Pressure transmitter and Indicator
  • Fuel Flow transmitter and Indicator (Optional)

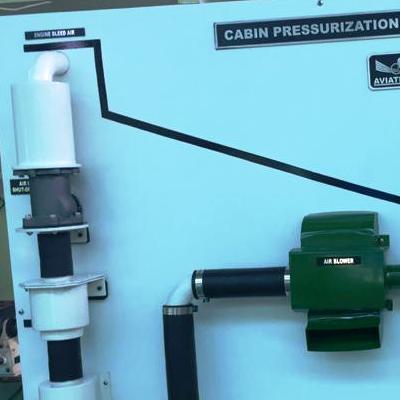

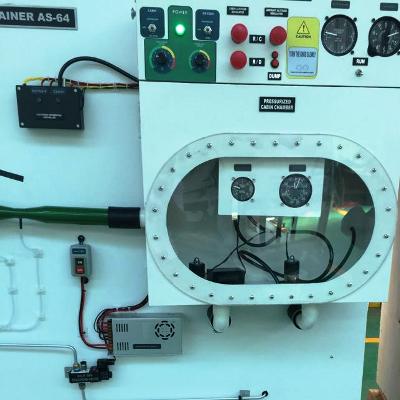

Aircraft Cabin Pressure System Trainer AS-64

The AVIATEK Aircraft Cabin Pressure System Trainer AS-64 is a Trainer System used to illustrate concept and operations of Cabin atmosphere control / cabin pressurization system used by modern Jet passenger aircraft, start with air inlet, bleed air, heat exchager, cabin pressurization, outlet valve and air dump valve up to pressure diffential controller. Completed with crew and passenger oxygen drop down mask to be dropped if the cabin pressure is drop lower than a certain condition in a certain period

Features

  • A compact, portable and ready to Plug in and Operate unit to demostrate aircraft cabin atmosphere / cabin pressurization operation including air inlet, heat exchanger, outlet valve, air dump.
  • Simulate cabin pressure using pressurized cabin chamber and vacuum chamber.

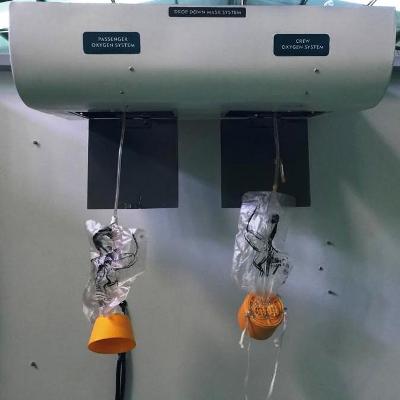

  • Including crew and passenger oxygen system and mask
  • Complete with gauges, cabin air pressure instruments and electronic differetial controller
  • Instructor / User manual including student Lab. Practices
  • include interactive CBT.



Components

  • Pressurized Cabin Chamber and vacuum chamber
  • Air inlet valve, Air filter, heat exchanger, regulator, air blower
  • Outflow Valve, Dump Valve
  • Crew and Passenger Oxygen System & Down Mask
  • Air Sucking Pump with Electric Motor
  • Differential Controller
  • Control Panel with Switches and Cabin condition settings
  • Cabin Altitude Indicator, Cabin Pressure, Cabin differential pressure indicator
  • Altimeter, rate of climb indicator
  • Altitude encoder
  • Training stand with caster wheels and brakes.

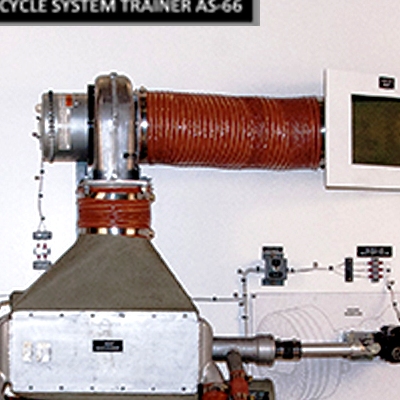

Aircraft Air Cycle System Trainer AS-66

The AVIATEK Aircraft Air Cycle System Trainer AS-66 is a Trainer System used to illustrate basic operations of the Air Cycle (Heat Exchanger) Air Conditioning Training System features a basic turbine air cycle system and shows how it provides cabin climate control. Components include an air cycle machine, heat exchanger, temperature sensor, control valves and a ventilation blower. The air cycle machine is driven by simulated turbine-engine bleed air. Unit can provide system faults through an instructor panel.

Features

  • A compact, portable and fully tested trainer unit to demostrate aircraft air cycle system operations.
  • A basic turbine air cycle system and shows how it provides cabin climate control
  • Perform Operation, servicing and mainteance of aircraft air cycle system.
  • Wiring are coded and provided with wiring diagram
  • System faults through instructor panel
  • Instructor / User manual including student Lab. Practice
  • include interactive CBT.



Components

  • Cabin chamber
  • Air cycle machine
  • Primary and Secondary Heat Exchange, water seperator, and a ventilation blower
  • Simulated Bleed Air Source
  • Control valves
  • ACM Bypass valve
  • Air Temperature sensor and indicator for cabin chamber, bleed air, and ambient air
  • Cabin Climate Control Panel
  • Instructor Panel
  • Air sucking pump with electric motor
  • Training stand with caster wheels and brakes.
