Aircraft Brake System Trainer AH-36

The AVIATEK Aircraft Brake System Trainer AH-36 is a Trainer System used to illustrates basic operations of hydraulic multiple-disk brake system used by Big Jet aircraft and or hydraulic single-disk brake system used by small aircraft.

Features

• A compact, portable and ready to operate unit to demostrate basic operations of aircraft hydraulic multiple-disc and single-disc brake system.
• Perform hydraulic brake servicing and maintenance including overhaul and bleeding
• Instructor / User manual including student Lab. Practice

Components

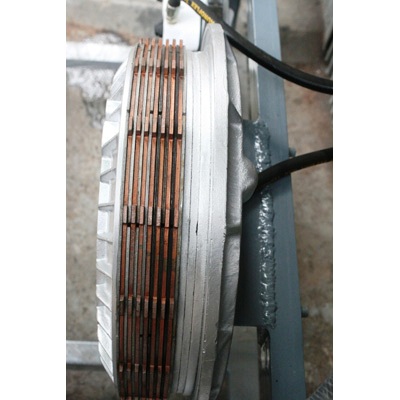

• Multiple-disc brake

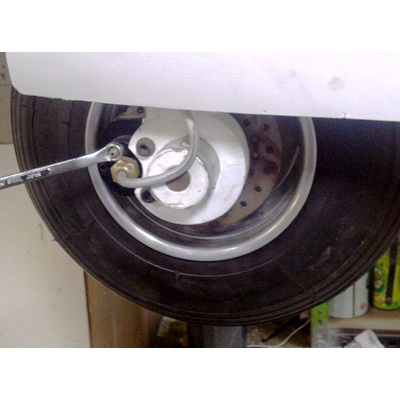

• Single-disc brake

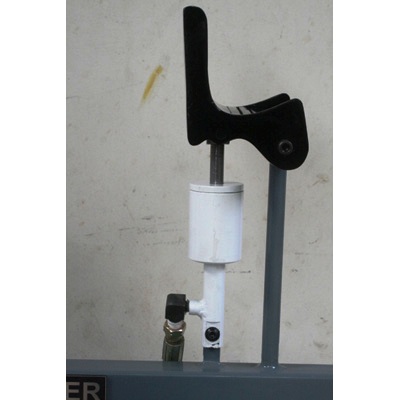

• Brake master cylinders with integral reservoirs
• Rudder Pedals
• Display/training stand

Aircraft Tricycle Landing Gear System Trainer AH-30

The AVIATEK Aircraft Tricycle Landing Gear System Trainer, AH-30 is a Trainer System used to illustrates basic operations of tricycle landing gear with steerable nose-wheel which is used by most modern aircraft.

Features

• A compact, portable and ready to operate unit to demostrate basic operations of Aircraft Tricycle Landing Gear including brake system and nose wheel steering.

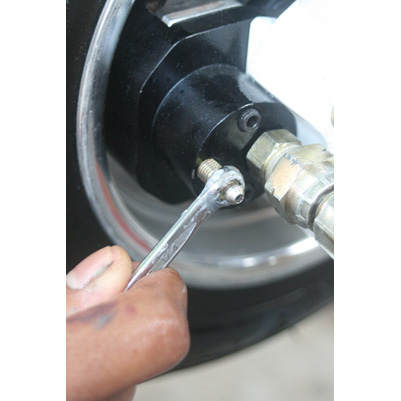

• Perform hydraulic brake servicing and maintenance including overhaul and bleeding.
• Instructor / User manual including student Lab. Practice.

Components

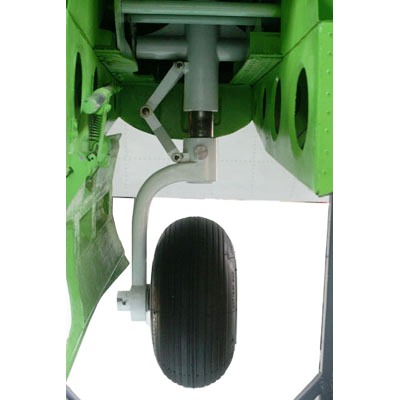

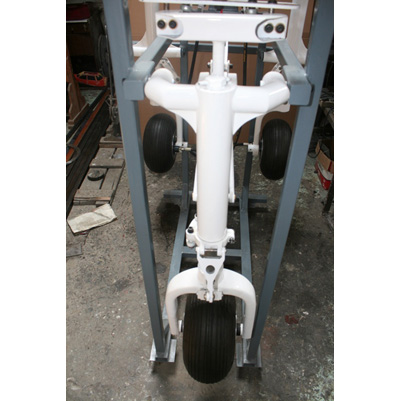

• Main Landing Gear complete with shock struts
• Hydraulic disc brake system for main landing gear
• Brake master cylinders with integral reservoirs

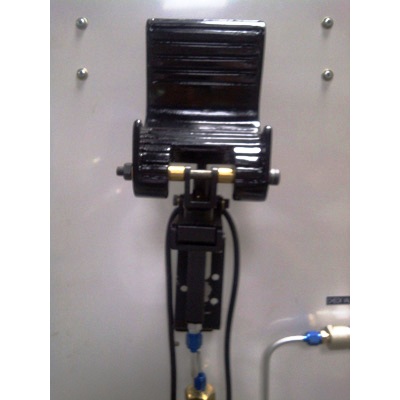

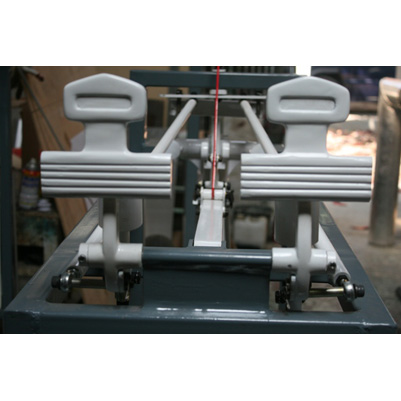

• Rudder Pedals
• Nose Wheel with Integrated steering mechanism

Aircraft Motorized Hydraulic System Trainer, AH-86

The AVIATEK Aircraft Motorized Hydraulic System Trainer, AH-86 is a Trainer System used to illustrates basic operations of motorized hydraulic system installed in most aircraft. There are multiple applications for aircraft hydraulic systems use in aircraft, such as wheel brakes, retractable landing gear. etc

Features

• A compact, portable, ready to Plug in and Operate unit to demostrate components, flow and how to works of Power Hydraulic system, including emergency manual handling of hydraulic system.
• Perform hydraulic servicing and maintenance
• Instructor / User manual including student Lab. Practice

Components

• Oil Reservoir
• Emergency Hand Pump
• Check Valve
• Pressure Measurement

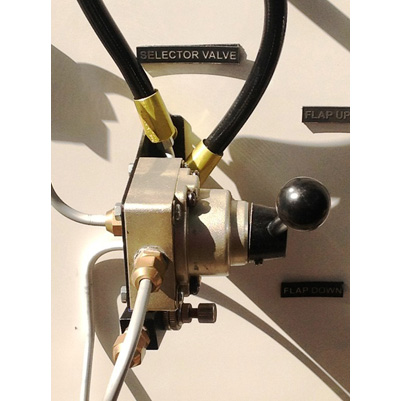

• Selector Valve
• Hydraulic Filter

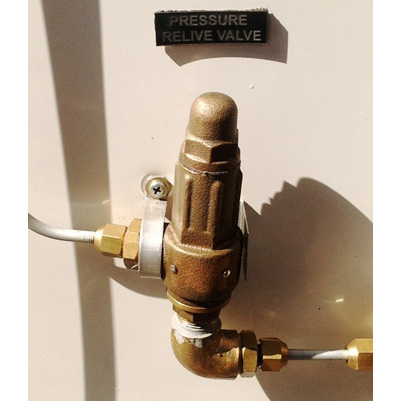

• Pressure Relief Valve

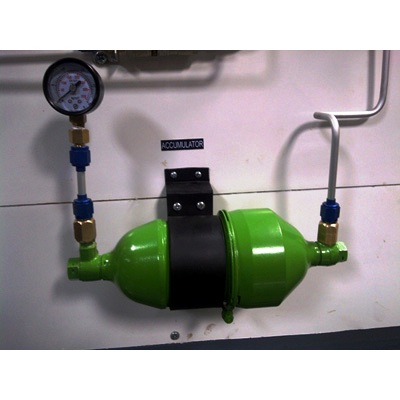

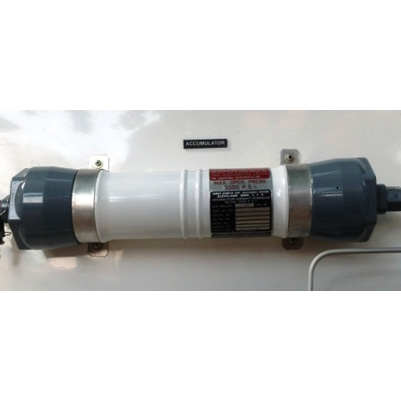

• Accumulator
• Electric Pump
• Actuator
• Training Stand

Aircraft Fluid Line System Trainer AH-90

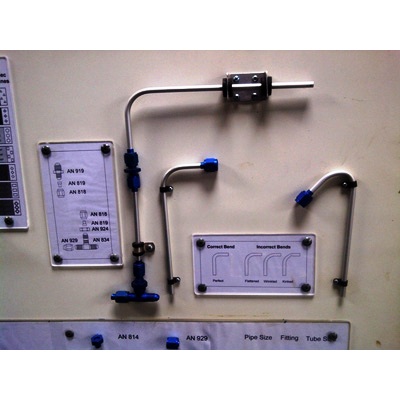

The AVIATEK Aircraft Fluid Line System Trainer AH-90 is a Trainer System used to illustrates how to install hydraulic fluid lines, fitting or connectors used in aircraft or any fluid line. AH-90 Trainer provides the sample of proper and incorrect fluid lines assembly such as bending tube and hose. Provided also with fitting or connections assembly, clamping and installation, etc.

Features

• Typical errors and faults seen in assembling lines and fittings

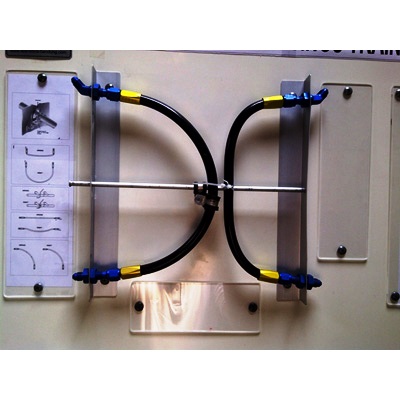

• Correct/Incorrect methods of constructing flexible hoses and lines with examples and cutaways show the construction of hose assemblies
• Correct/Incorrect methods of constructing rigid lines with examples detailing line-to-fitting and hose connections
• Graphic Illustration of proper color code for lines: AN, AC, MS and Pipe-Thread Fittings illustrated and contrasted
• Typical fittings shown in complete and cutaway form
• Typical fitting-to-line connections shown
• Multiple hose types
• Small Tool Kit attached to Unit with equipment for assigning classrom projects (Tubing Bender, Cutter, Flaring Tools and Aeroquip Assembly Tools)
• Fully assembled and ready for the classroom
• Mounted on an Easy-to-Roll Display/Training Stand

Components

• (2) Types of Rigid Lines
• (6) Types of Flexible Lines

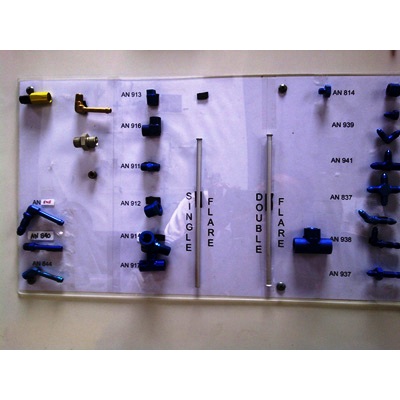

• (21) Different Types of AN Fittings
• (5) Different Types of MS Fittings
• (6) Different Types of pipe thread Fittings

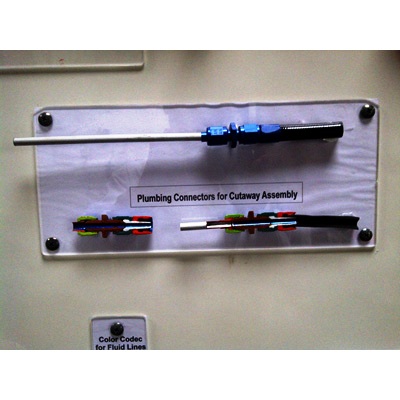

• (6) Different Types of Line-to-Host Connection Fittings
• Correct/Incorrect example of Flexible Lines
• Correct/Incorrect example of Rigid Lines
• Training Stand

Aircraft Hydraulic Landing Gear Trainer AH-14

The AVIATEK Aircraft Hydraulic Landing Gear Trainer AH-14 is a Trainer System used to illustrates basic operations of hydraulic landing gear system used in most aircraft flying today from small and lightweight to large and heavy aircraft

Features

• A compact, portable and ready to Plug in and Operate unit to demostrate landing gear and flap operations including landing gear braking, rigging and door operations.
• Perform brake and hydraulic servicing and maintenance
• Instructor / User manual including student Lab. Practice

Components

• Wing section from twin-engine aircraft including wheel well and Landing gear door
• Aircraft hydraulic powerpack, including: Landing gear control, Emergency hand pump, Fluid reservoir, Thermal relief valve, Main relief valve and system filter, Hydraulically activated flap system
• Operational brake system with brake pedal, master cylinder, brake, wheel and tire assembly
• Landing gear position indicator lights (up and down)
• Electrically driven engine hydraulic pump
• Landing gear warning horn
• Training stand

Aircraft Hydraulic Dual Landing Gear Trainer AH-14P

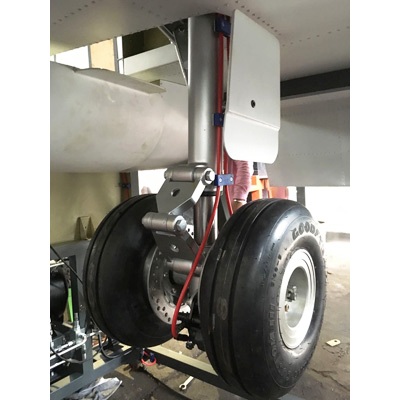

The AVIATEK Aircraft Hydraulic Dual Landing Gear Trainer AH-14P is a Trainer System used to illustrates an integrated, modern and latest operations of hydraulic dual landing gear system used in most large and heavy aircraft flying today including sensors and camera to monitor landing gear movements

Features

• A compact, portable and modern, ready to operate trainer unit to demostrate landing gear and flap operations including landing gear braking, rigging and door operations.
• Perform brake and hydraulic operations and servicing and maintenance

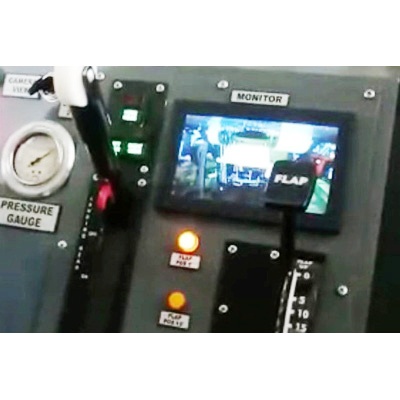

• Camera & Monitor to display landing gear movements
• Instructor / User manual including student Lab. Practice

Components

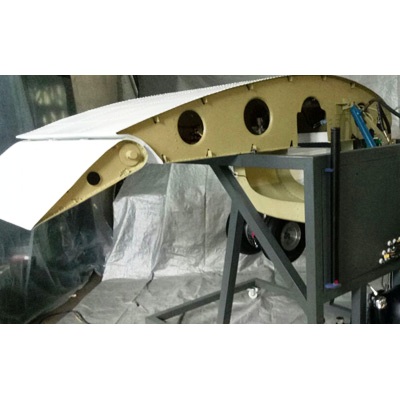

• Wing section from twin-engine aircraft including wheel well, Landing gear door and flap
• Dual main landing gear

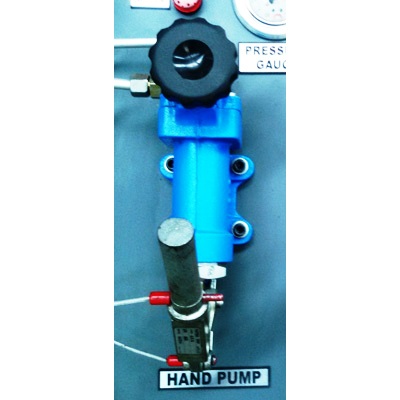

• Aircraft hydraulic powerpack, including: Landing gear control, Emergency hand pump, Fluid reservoir, Thermal relief valve, Main relief valve and system filter, Hydraulically activated flap system
• Landing gear position indicator lights (up and down)
• Landing gear warning horn integrated with Flap system
• Integrated control panel including manual hand pump
• Electrically driven engine hydraulic pump
• Operational brake system with brake pedal, master cylinder, brake, wheel and tire assembly
• Training stand

Aircraft Antiskid Braking System Trainer AH-37

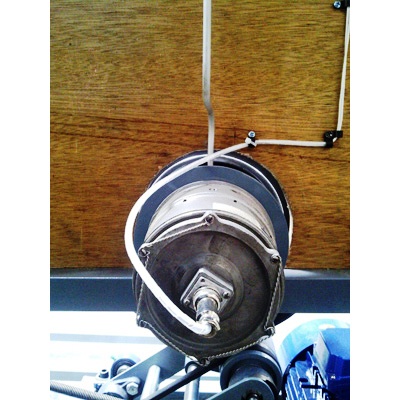

The AVIATEK Aircraft Antiskid Braking System Trainer AH-37 is a fully functional Advanced Hydraulic Trainer System to illustrates the components and operations of anti skid breaking system used by modern executive Jet aircraft to fulfill the latest FAA requirements.


Features

• Ready to Plug in and Operate to demostrate anti skid system function
• Multiple Auto Brake Selection and landing speed to demostrate various landing conditions.
• Instructor / User manual including student Lab. Practice
• Wiring Diagram and standard aircraft wiring code
• All components mounted on custom roll-around stand

Components

• Landing Gear with wheel and tire
• Hydraulic Disc Brake
• Wheel speed sensor.

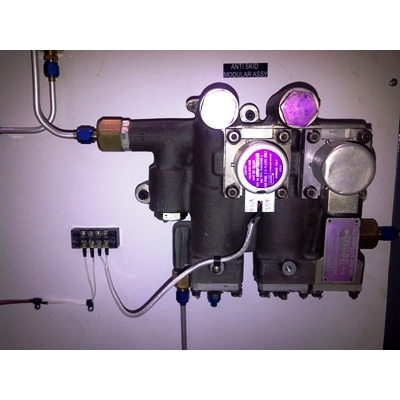

• Anti Skid control valve
• Complete powered hydraulic system including Pressure Relief Valve, Pressure Measurement and plumbing
• Brake control system with power brake valve
• Anti Skid Control Box
• Instrument Panel
