Aircraft 28V Electrical System Trainer (with Generator) AE42-24G

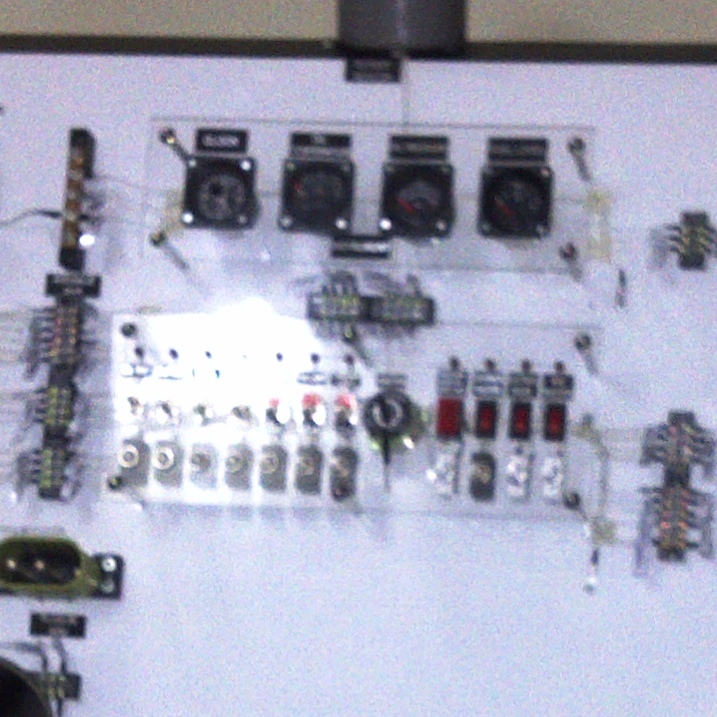

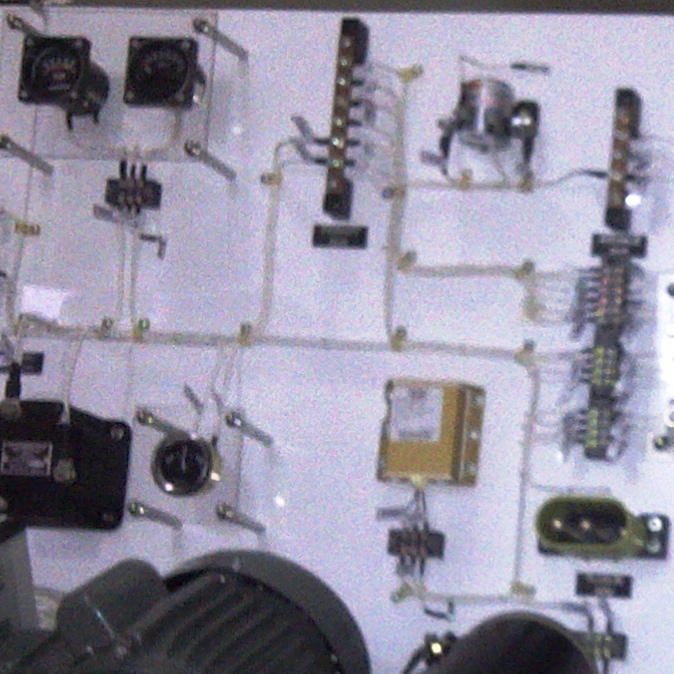

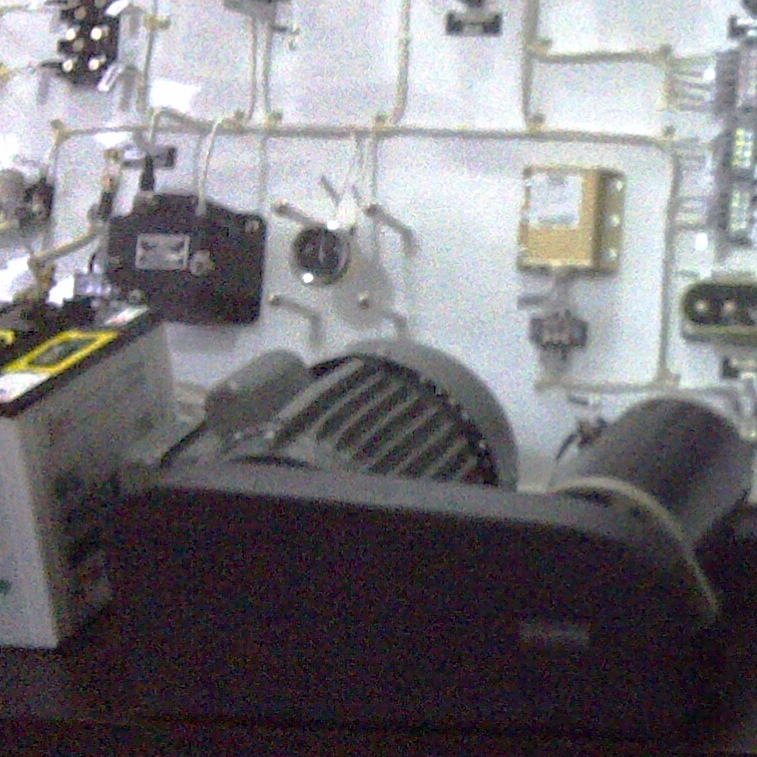

The AVIATEK 28V Aircraft Electrical System Trainer (with Generator) AE42-24G is a complete and fully functional Trainer System proposed to simulate 24 Volt Electrical System installed in a light single engine modern aircraft flying today. Student may learn in detail start from Battery, Engine driven Generator System, Distribution Buses and distribution terminals up to electrical loads such as starter and lighting, etc. Provided also with cockpit panel for indicators, switches and Circuit Breakers etc. Instructor may insert faults in one or more equipments throught instructor/fault panel
Features
- Ready to Plug in and Operate trainer unit

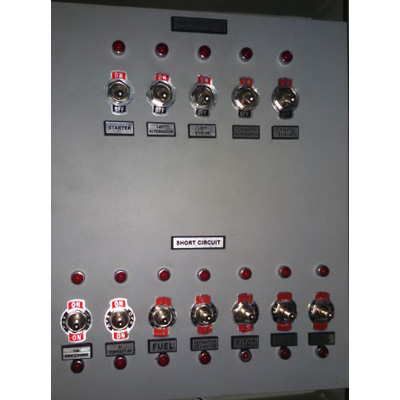

- Instructor Special Panel to simulate open or short circuit electrical malfunctions.
- Instructor manual including student Lab. Practice
- Wiring Diagram and standard aircraft wiring code
- training stand and cabinet with caster wheel and brakes
- Include Interactive CBT
Components
- 24 Volt DC Current System.
- 24 Volt Aircraft Battery, Generator and GPU Plug.

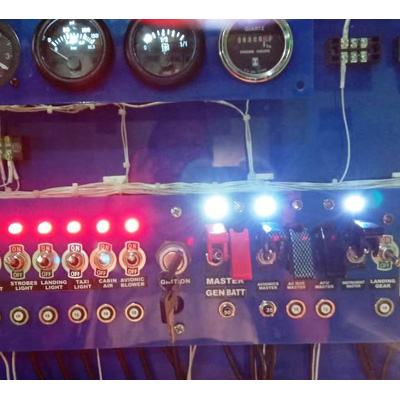

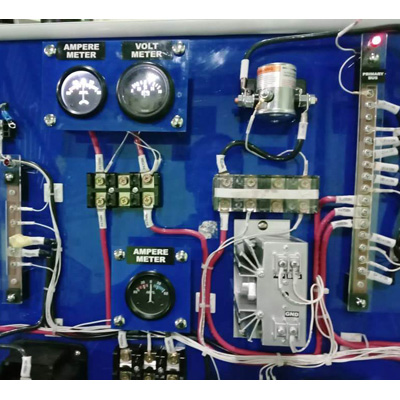

- Relevant Cockpit electrical component including indicators, switches and circuit breakers.
- Primary Bus, Avionics Bus and Distribution Terminal

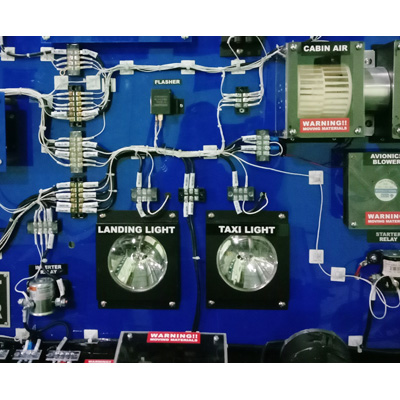

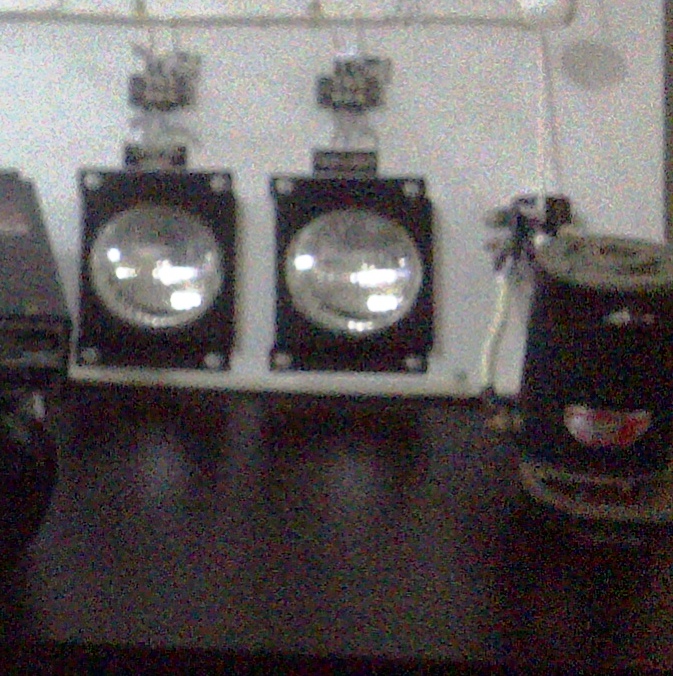

- Load including Landing, Taxi light, Rotating Beacon and Navigation light with Flasher Unit
- Voltage Regulator and Reverse Current Relay to control generator
- 115 Volt/400 Hz Inverter
- Starter Circuit
- Fuel quantity transmitter & indicator
- Stall warning & horn
- Optional: speed control
- Optional & custom add. equipment upon request
|
Aircraft 28V Electrical System Trainer (with dual Alternator) AE42-24D

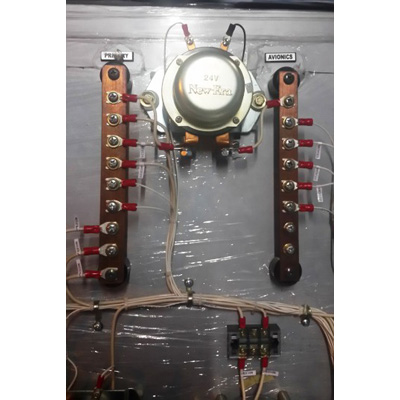

The AVIATEK 28V Aircraft Electrical System Trainer (with dual Alternator) AE42-24D is a Trainer System proposed to simulate 28 Volt Electrical System installed in a modern multi engine aircraft. The Trainer is provided with dual aircraft battery, dual alternator driven by dual electrical motor, Primary bus, Avionics bus, distribution terminal, AC Bus with inverter up to electrical load including starter, lighting and avionics load, etc. Student my practice the control through typical cockpit panel consist of indicators, switches and Circuit Breakers. Instructor may insert faults in one or more equipments through instructor/fault panel
Features
- Ready to Plug in and Operate Training Unit
- Instructor Special Panel to simulate open or short circuit electrical malfunctions.
- Instructor manual including student Lab Practice.
- Wiring Diagram with aircraft wiring code & labels.
- Optional: Split Bus with dual primary /avionics buses
- Mounting pad for generator and electrical motor
- Covers for all moving materials
- Interactive CBT included.
Components
- 24 Volt DC Current System.

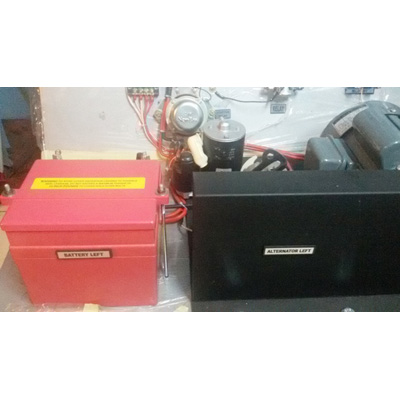

- Dual 24 Volt Dual Aircraft Battery, Dual Alternator and GPU plug.
- Typical cockpit panel including indicators, switches and circuit breakers.

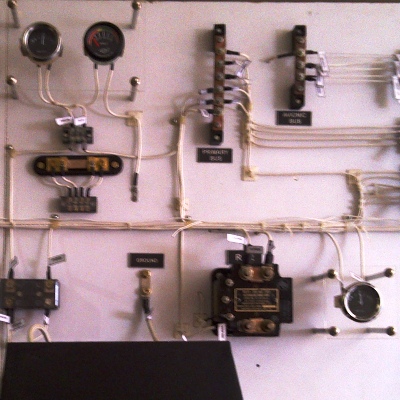

- Primary Bus, Avionics Bus, Aux Bus, Battery Bus, Alternator Bus and Distribution Terminal

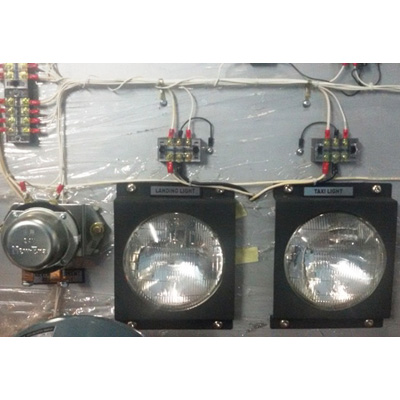

- Load including Pitot Heater 24V DC, Landing, Taxi light, Rotating Beacon and Navigation light w/ Flasher Unit
- Dual Voltage Regulator and Dual Reverse Current Relay to control Dual Alternator
- 115 Volt/400 Hz AC Inverter for AC Power System
- Stall warning system and horn 24VDC
- Instrumentation (Volt meter L & R, Ampere meter L & R, Aircraft Clock, Fuel Quantity Indicator w/Transmitter 24VDC).
- Dual 24 VDC Starter Circuit
- Dual Electric Motor 1 HP, 2800 rpm 220VAC
- Training stand with caster wheels and brakes.
- Optional: Speed Control
- Optional & custom additional equipment
|
Aircraft 28V Dual Turbine Electrical System Trainer AE42-D28G

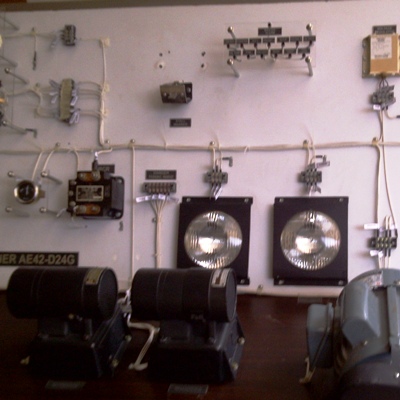

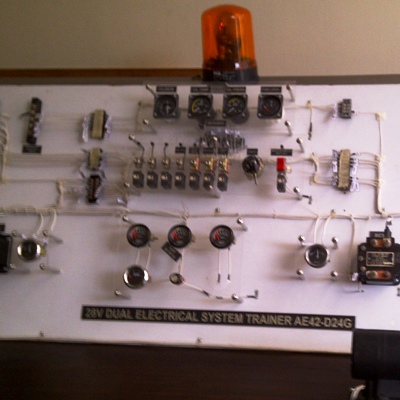

The AVIATEK 28V Dual Turbine Aircraft Electrical System Trainer AE42-D28G is a complete and fully functional Trainer System proposed to simulate 28V Electrical System typical in modern multi engine commuter, executive turbo prop and jet aircraft. Student learn in detail primary power source, engine driven power source with alterator or generator, Primary Bus, Avionics Bus, Aux Bus, AC Bus, distribution terminal, electrical load such as starter, lighting, pitot, transmitter/indicator through a typical control panel contain indicator, switches and circuit breakers. Student may experience one or more equipment fault inserted through instructor / fault panel.
Features
- Ready to Plug in and Operate Training Unit
- Instructor Special Panel to simulate open or short circuit electrical malfunctions.
- Instructor manual including student Lab Practice.
- Wiring Diagram with aircraft wiring code & labels.
- Latest Development: Split Bus with dual primary /avionics buses
- Optional: User/Student selectable Paralel Bus or Split Bus through a switch
- Optional: non-conductive surface

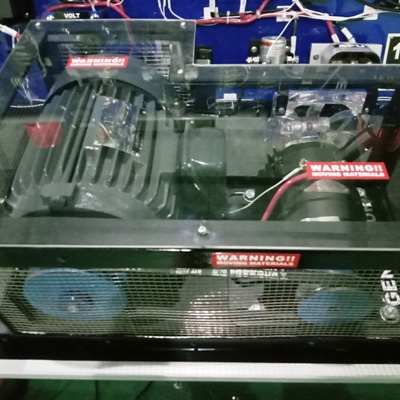

- Mounting pad for generator and electrical motor
- Enclosure for all moving materials
- Interactive CBT included.
Components
- 24 Volt DC Split bus or Paralel bus Current Distribution System
- Dual 24 Volt Dual Aircraft Battery, Dual Alternator or generator and a GPU plug.
- Typical cockpit panel including indicators, switches and circuit breakers.
- Primary Bus, Avionics Bus, Aux Bus, Battery Bus, Alternator or Generator Bus and Distribution Terminal
- Load including Pitot Heater 24V DC, Landing, Taxi light, Rotating Beacon and Navigation light w/ Flasher Unit
- Dual Voltage Regulator and Dual Reverse Current Relay to control Dual Alternator or Generator
- 26 and 115 Volt/400 Hz AC Dual Inverter for AC Power System
- Stall warning system and horn 24VDC
- Instrumentation (Volt meter L & R, Ampere meter L & R, Aircraft Clock, Fuel Quantity Indicator w/Transmitter 24VDC).
- Dual 24 VDC Starter Circuit for dual engine

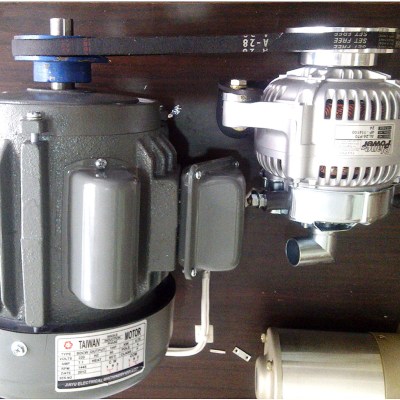

- Dual Electric Motor 1 HP, 2800 rpm 220VAC
- Training stand with caster wheels and brakes.
- Optional: Speed Control
- Optional & custom additional equipment
|
Wire Harness Practical Trainer AE-40-2
The AVIATEK Wire Harness Practical Trainer AE-40-2 is a Trainer provides hands-on practice to students for fabricating, installing, and reapiring aircraft wire harness. The exercises are designed to provide training that would prepare the steudents to comply with FAA AC43-13 and EASA Part 66 Module 7 requirements.
The panel allows preparation and routing between two points on the panel while following the standard and approved aircraft maintenance practices. The trainer allows learning of Wire Routing Techniques through holes, bulkheads, floors, hot/engine area, fuel area or structural members. The consumables will need replenishment for regular use
Features
- Mounted on a stand with caster wheels, including brakes.

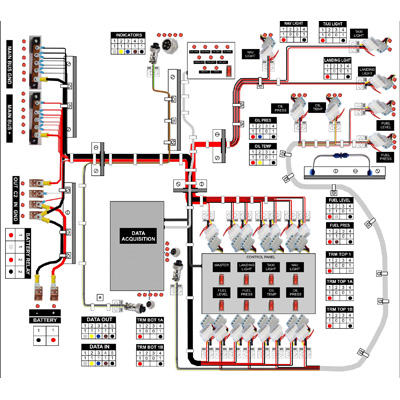

- Wiring diagram and Wire harness diagram case samples of aircraft electrical from battery, load, sensors and control panel
- Wiring plan including selecting wire, connectors for wire.
- Wiring routing through holes, bulkheads, floors, hot/engine area, fuel area or structural members.
- Install/crimp circular, rectangular connectors, terminals
- Wire protection, clamp, clips & insulations
- Wire inspection & maintenance
- Interactive CBT included.
Components
- Parts, mounting & Tools for hands-on practice to students for fabricating, installing, and repairing aircraft wire harness.
- All components used in this trainer are aircraft grade.

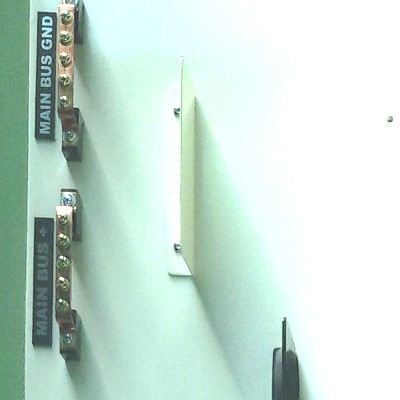

- Battery Area, Structure Area, Wing Section, Engine Section, Engine Sensors Section, Pilot Control Panel Area

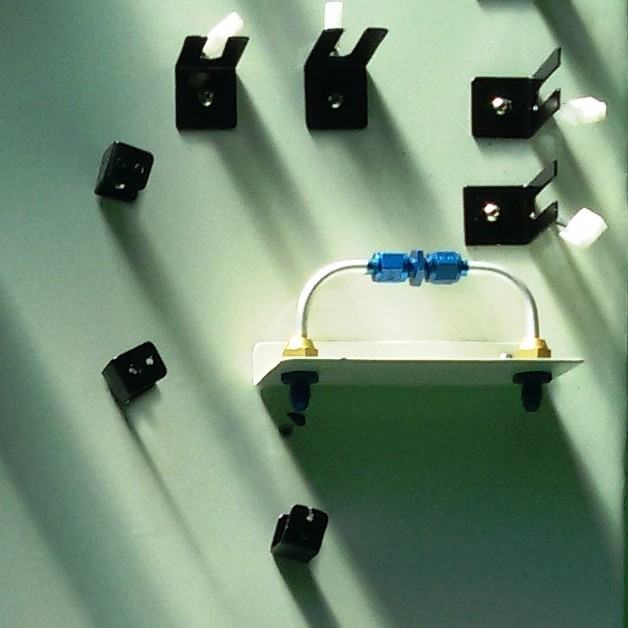

- Provided with Grommet, Wire-End Holder, Mount Cable Clamps for Z Member, wire clamp and standoffs

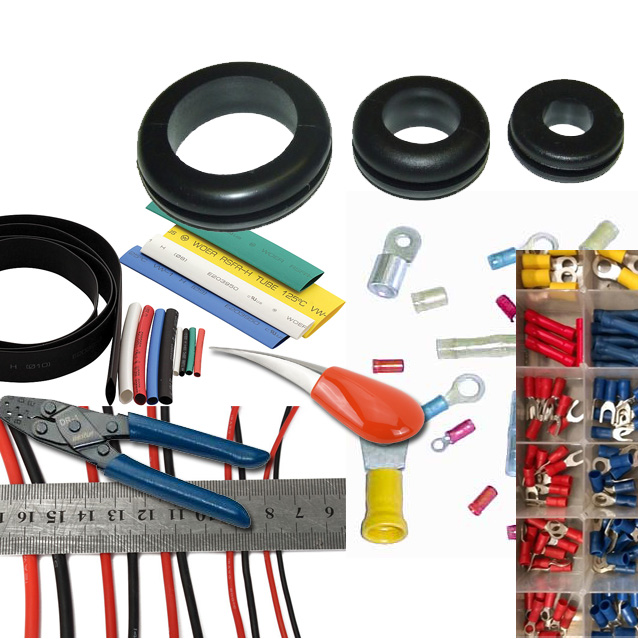

- Cable Kit, wire harness kit, fastener kit, Harness assembly tool kit, connectors & clips
- The consumables for regular use
|
|
