Cockpit Instrumentation System Trainer AS-76

The AVIATEK Aircraft Cockpit Instrumentation System Trainer AS-76 is a Trainer System completed with functional simulator system used to illustrates basic operations of Cockpit Instrumentation and Engine Instrumentation used in common aircraft such as altitude indicator, airspeed indicator, rate-of-climb indicator, directional indicator for flight instruments and oil temperature, oil pressure, fuel level etc for engine instruments. Come with completely plumbed and functional, the trainer is delivered ready to operate.

Features

• A compact, portable and ready to Plug in and Operate unit to demonstrate concept and operations of flight and engine instruments.

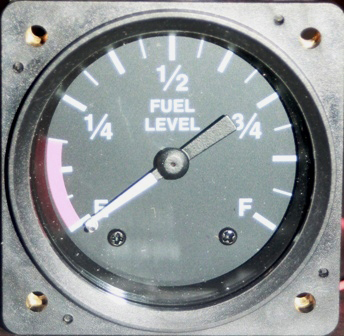

• Gauges and transmitter/indicator type of instruments.
• All components mounted on custom roll-around training stand with caster wheel and brakes
• Instructor / User manual including student Lab. Practice
• Include interactive CBT.

Components

Cockpit Instrumentation System Trainer with Digital PFD AS-76P

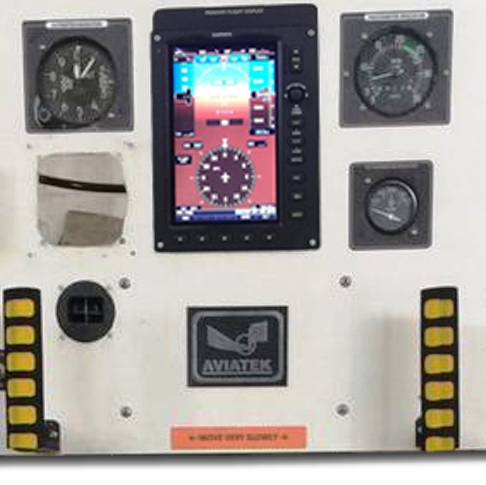

The AVIATEK Cockpit Instrumentation System Trainer with Digital PFD AS-76P with a digital, flat-panel PFD is a complete, functional simulator Trainer System used to illustrates ad introduce of use and operation of digital, flat-panel Primary Flight Displays as modern digital Cockpit Instrumentation and Engine Instrumentation used in most latest aircraft aside of coventional flight and engine instruments / gauges. All of the systems are completely plumbed and functional and the trainer is delivered ready to operate. This trainer is well suited to demostrate the migration of conventional cockpit and engine instruments to the modern digital cockpit and engine instruments using digital PFD

Features

• A compact, portable and ready to Plug in and Operate unit to demonstrate concept and operations of modern digital, flat-panel PFD.
• A complete, functional simulator to demonstrate flight and engine conditions
• Flight Instruments
  • Coventional Instruments/Gauges
  • Digital PFD
• Systems
  • Pitot/static system, Tach generator, Vacuum press regulator, Oil temperature sensor.
• Engine Instruments
  • Engine RPM, Manifold pressure , Oil temp indicator
• Optional Extra Add-ons
  • Magnetic Compass
  • Warning system indicator.
• All components mounted on custom roll-around training stand with caster wheel and brakes
• Instructor / User manual including student Lab. Practice
• Include interactive CBT.

Components

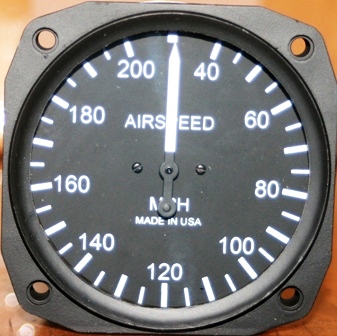

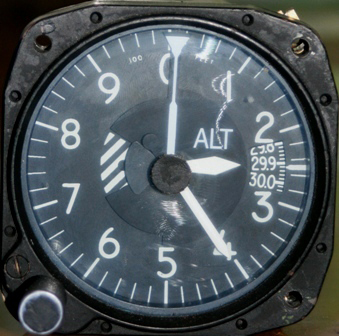

• Coventional Instruments/Gauges (Altimeter, Airspeed Indicator, Vertical Speed Indicator, Attitude Indicator)

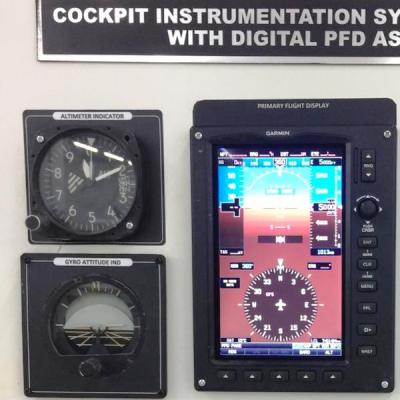

• Digital PFD (Airspeed, Attitude, Altitude, Turn coordinator, HSI, Vertical speed indicator, ADAHRS, Slaved directional gyro with heading bug)

• Engine tachometer
• Manifold pressure gauge
• Oil temperature indicator

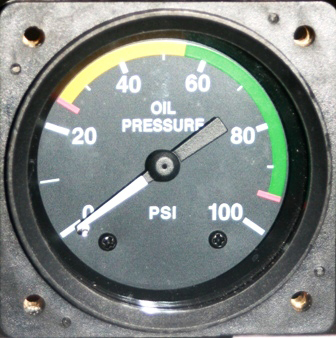

• Oil pressure indicator

• Pitot/static system (Pitot tube, Fuselage side static port, Alternate static source, Static source selector)
• Tach generator
• Vacuum pressure regulator

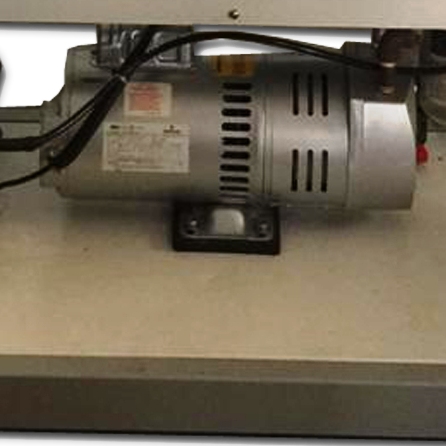

• Vacuum chamber/filter/pump
• Oil temperature sensor

Aircraft Avionics System Trainer AV-22

The AVIATEK Aircraft Avionics System Trainer AV-22 is designed to provide hands-on practical and operations of aircraft electronics avionics system. The system includes a complete electronic Instrument Flight Rules (IFR) avionics package with fully functional components. An instructor’s panel enables the induction of airframe system faults.

Aircraft Avionics System Trainer with Digital PFD (see AV22-P) is to provide avionics training with a modern glass panel digital primary flight display (digital PFD).


Features

• Ready to Plug-in and Operate Training unit
• Instructor Special Panel to simulate airframe system faults.
• Instructor manual including student Lab. Practice
• Wiring Diagram with standard aircraft wiring code
• Training stand with caster wheel and lock
• Include Interactive CBT

Components

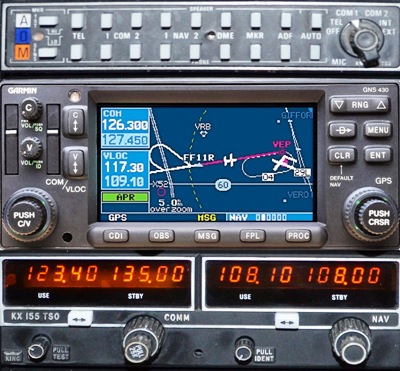

• Standard NavCom radio.
• GPS (Global Positioning System).
• Transponder.

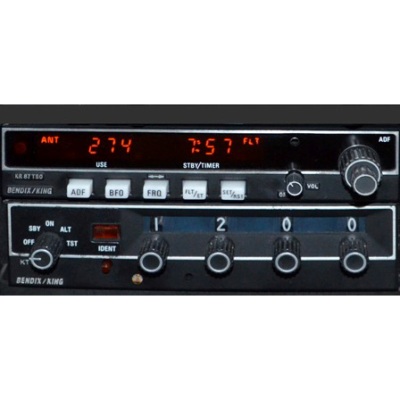

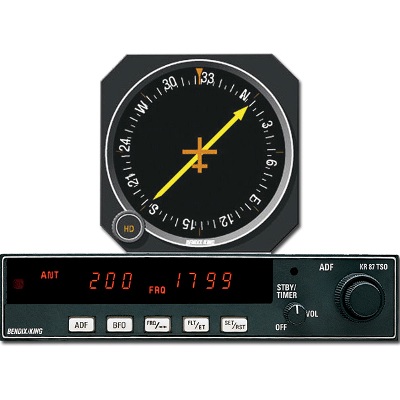

• Aircraft Direction Finder (ADF) with indicator.
• Audio Panel.

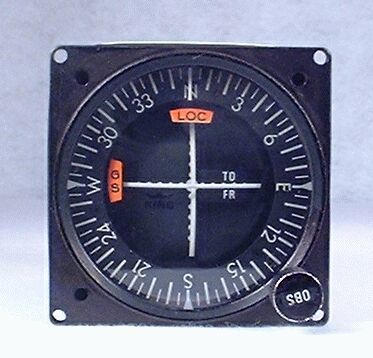

• ILS and VOR indicator.
• Altitude encoder.
• Intercom.
• Function altitude system for encoder operation.
• Marker beacon receiver.
• Dual headsets, Microphone.
• Ramp tester to test VOR, COMM, marker beacon, glide slope and localizer.

Aircraft Avionics System Trainer with Digital PFD AV-22P

The AVIATEK Aircraft Avionics System Trainer with Digital PFD is to provide hands-on practical and operations of aircraft electronics avionics system with introduction of a modern glass panel digital primary flight display (digital PFD). This trainer is well suited to be a bridge of electronic Instrument Flight Rules (IFR) avionics and introduction to the digital primary flight display. An instructor’s panel enables the induction of airframe system faults.


Features

• Ready to Plug-in and Operate Training unit
• Instructor Special Panel to simulate airframe system faults.
• Instructor manual including student Lab. Practice
• Wiring Diagram with standard aircraft wiring code
• Training stand with caster wheel and lock
• Include Interactive CBT

Components

• Digital PFD.
• Standard NavCom radio.
• GPS (Global Positioning System).
• Transponder.
• Aircraft Direction Finder (ADF) with indicator.
• Audio Panel.
• Altitude encoder.
• Intercom.
• Function altitude system for encoder operation.
• Marker beacon receiver.
• Dual headsets, Microphone.
• Ramp tester to test VOR, COMM, marker beacon, glide slope and localizer.

Aircraft Avionics System Trainer AT-01

The AVIATEK AT-01 Aircraft Avionics System Trainer brings the real life experience to the classroom. The trainer provides practical, hands-on training using the real avionics equipment configured and wired just like an airworthy aircraft. The trainer is designed to give the students a good understanding aircraft equipment. Student also develop logical methodical to troublehoot avionics faults inserted by the instructor. The trainer is mounted on a moveable stand and comes complete with instructor and students manuals. It is also with a portable NAV/COM tester, DME & Transponder testers are supplied as optional item. The trainer comes complete with all wiring, antennas, transmitter, receiver and indicators


Features

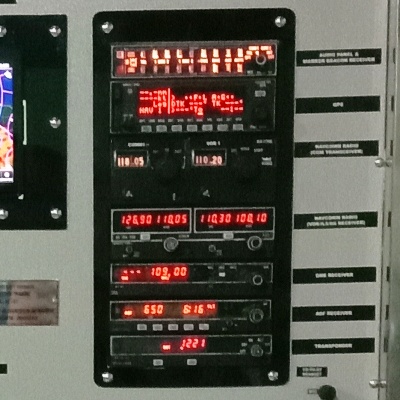

• Full functional Dual NAVCOM Radio, GPS, Transponder, ADF, DME, VOR, LOC and ILS Receiver, with antennas
• Altitude simulator for Transponder Operation Mode-C

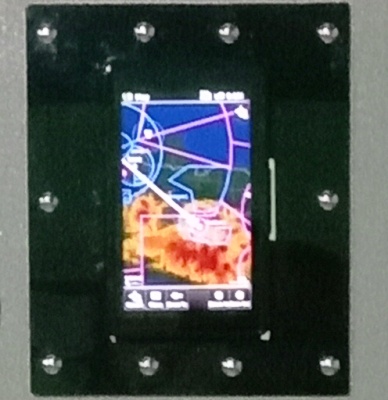

• Modern LCD Nav Display with GPS

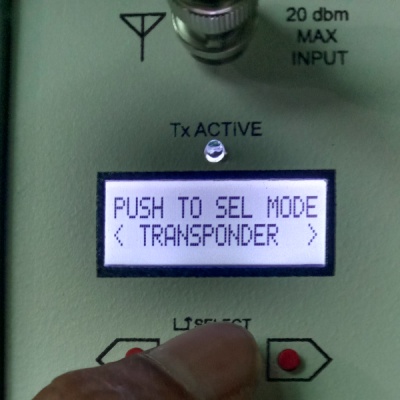

• Portable NAV/COM tester
• Instructor / User manual including student Lab. Practice
• Aircraft wiring harnesses, wiring Diagram and standard aircraft wiring code
• All components mounted on custom roll-around stand
• Include Interactive CBT

Components

• Dual NAVCOM Radio
• Transponder, Automatic Direction Finder (ADF), Distance Measurement Equipment (DME), GPS, VOR, ILS Receiver
• 7 (seven) Antennas include XPNDR, ADF, GPS, DME, COM, LOC, NAVCOM

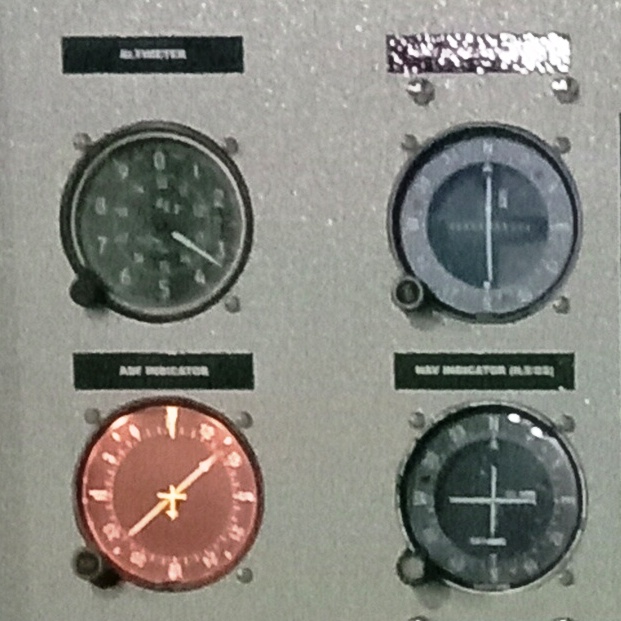

• Altimeter, ADF Indicator, 2 (two) NAV Indicator
• Altitude Simulator including Altitude Encoder and vacuum Pump
• Audio Panel & Intercom System
• Marker Beacon
• Mic and Headphone connection point for Pilot and Co-Pilot include 2 (two) headset
• LCD Nav Display with GPS built-in
• Fault Insertion Box
• Ramp tester to test VOR, COMM, marker beacon, glide slope and localizer

Aircraft Electronic Flight Instruments System Trainer AV-18

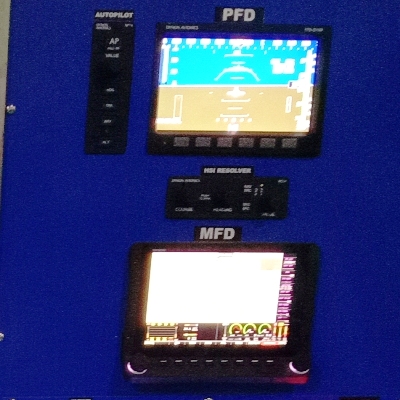

The AVIATEK Electronic Flight Instruments System Trainer AV-18 or EFIS System Trainer is intended for operations of the modern digital aircraft electronic flight instrument systems. It features modern flight instruments display (PFD), moving maps and engine instruments display (MFD). It is visualized in 7 inch high resolution display. It comes complete, tested and ready to operate including a fault panel for the instructor. PC Based simulator and oscilloscope will allow student and user to study more advanced on output sensors and signal fed to the digital PFD and MFD.


Features

• Full functional primary flight display (PFD) for attitude/directional guidance with electronic engine monitoring and detailed moving-map multifunction display (MFD) capabilities.
• clearly visualized on the 7-inch high-definition display. Optional: Dual high definition display (PFD: flight display + MFD: Maps+Engine display)
• Equipped with a comprehensive sensor package for ADAHRS, engine monitoring, plus magnetometer and temperature probe.
• Aircraft wiring harnesses with wiring code. Optional: Military standard MIL-W-22759/16
• Instructor / User manual including student Lab. Practice
• Wiring Diagram and standard aircraft wiring code
• All components mounted on custom roll-around stand
• Iclude Interactive CBT

Components

• Air Data Sensors: Airspeed, Altitude, AOA, OAT

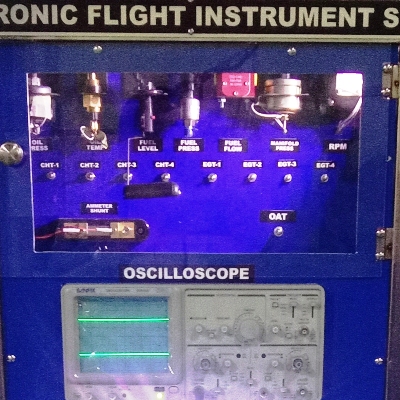

• Engine Sensors: 4 x CHT, 4 x EGT, Oil Temperature, Oil Pressure, Fuel Flow, Fuel Quantity, Manifold Pressure, Ammeter Shunt, Engine RPM
• Avionics Interfaces: GPS, Altitude Encoder, Autopilot, NAV, ILS, ARINC 429

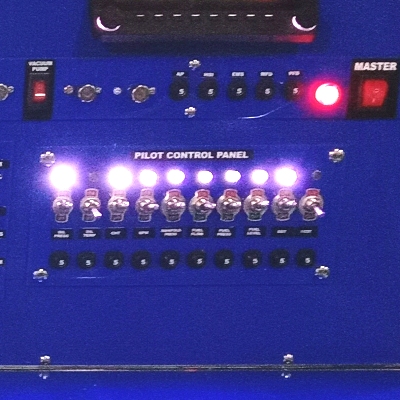

• Control Panel: switches, circuit breakers, indicators
• Instructor Panel for fault insertions
• Patch & Test Panel for check and study more on signal fed to the PFD and MFD

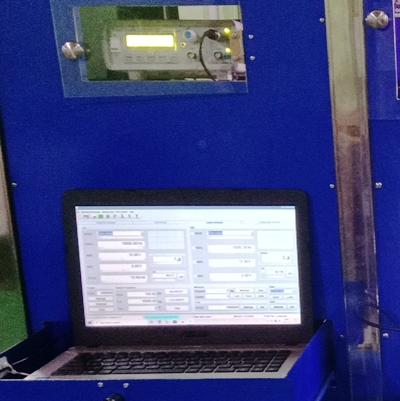

• PC Based Simulator
• Oscilloscope
