Helicopter Main Mast System Trainer HS-11

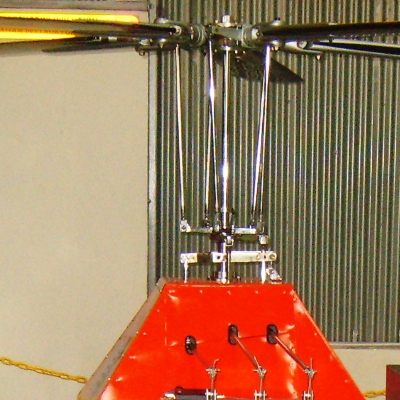

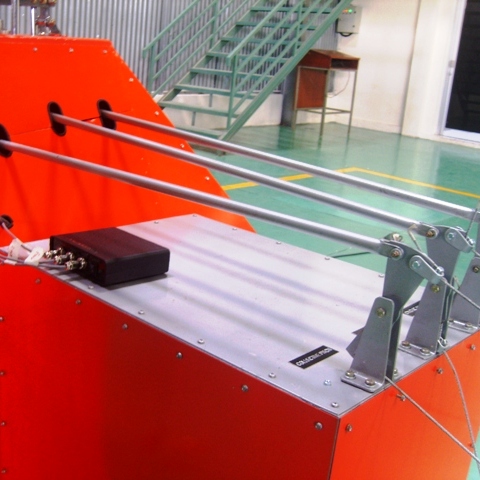

The Aviatek Helicopter Main Mast System Trainer HS-11 is a trainer system used for lab technician training students of aircraft / helicopters with basic studies Main Rotor Helicopter System that includes the swash plate, pitch link, rotor hub, drag damper, rotor blade, blade tracking and balancing blade. a PC Based data acquisition is to allow to monitor rotor speed and also vibration measurement

Features

  • A fully tested and ready to Plug in and Operate unit to demostrate a helicopter main mast operations including Blade Tracking and Blade Pitch Setting.
  • Perform Replacement and installation of Rotor Blade, balancing Rotor Blade, Blade Tracking, Rotor Vibration Measurement, Blade Pitch Setting.
  • PC Based data acquisition and data logging
  • Rotor speed transmitter, rotor vibration transmitter.
  • Each rotor blade is equipped with Drag Bolt / Damper, Trim Tabs and also equipped with a Rotary Beacon & Safety Net
  • Instructor / User manual including student Lab. Practice
  • Interactive CBT.



Components

  • Rotor Diameter :
       3,600 mm
  • Rotor Blades :
       5 bar
  • Rotor Airfoil :
       NACA 0012
  • Mover :
       3.5kw electric motor 3 ph 380VAC
  • Speed :
       0-500 rpm
  • Rotor Control :
       Collective Pitch, Cyclic Aileron & Elevator

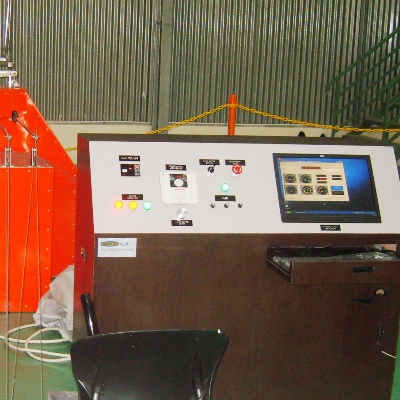

  • Control Panel :
       Power Switch, Speed Control,
       Emergency Button, Fuses,
       Tachometer







Helicopter Hydraulic Main Rotor System Trainer HS-41

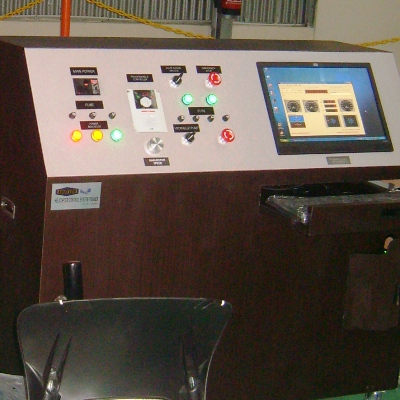

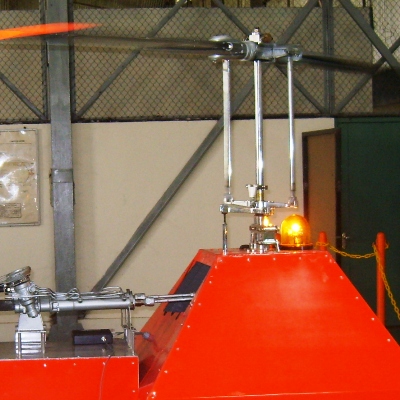

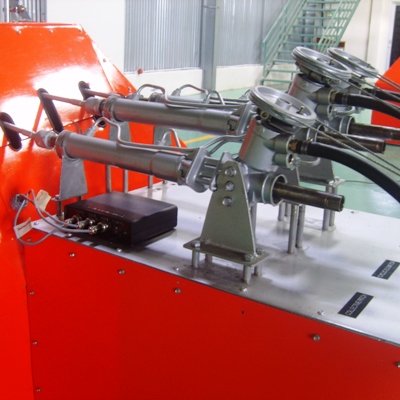

The Aviatek Helicopter Hydraulic Main Rotor System Trainer HS-41 is a trainer system used for lab technician training students of aircraft / helicopters with basic studies Hydraulic System Control of Helicopter Main Rotor which includes Hydraulic Pump, Accumulator, Control Valves, Pressure Gauge, Hydraulic Lines and Hydraulic Actuator. a PC Based data acquisition is to allow to monitor rotor speed and also hydraulic system measurement.

Features

  • A fully tested and ready to Plug in and Operate unit to demostrate a helicopter hydraulic system control of helicopter main rotor including control valves and hydraulic lines.
  • Perform Replacement and installation of Hydraulic Pump, Accumulator, Actuator, Hydraulic Lines and Hydraulic Fluid, Hydraulic Pressure Measurement, Pitch Control Settings.
  • PC Based data acquisition and data logging
  • Rotor speed transmitter, hydraulic pressure transmitter.
  • Each rotor blade is equipped with Drag Bolt / Damper, Trim Tabs and also equipped with a Rotary Beacon & Safety Net
  • Instructor / User manual including student Lab. Practice
  • Interactive CBT.



Components

  • Rotor Diameter :
       3,600 mm
  • Rotor Blades :
       5 bar
  • Rotor Airfoil :
       NACA 0012
  • Mover :
       3.5kw electric motor 3 ph 380VAC
  • Speed :
       0-500 rpm
  • Rotor Control :
       Collective Pitch, Cyclic Aileron & Elevator
  • Control Panel :
       Power Switch, Speed Control,
       Emergency Button, Fuses,
       Tachometer






Helicopter Tail Rotor System Trainer HS-23

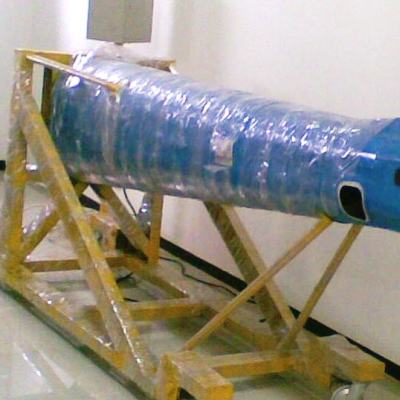

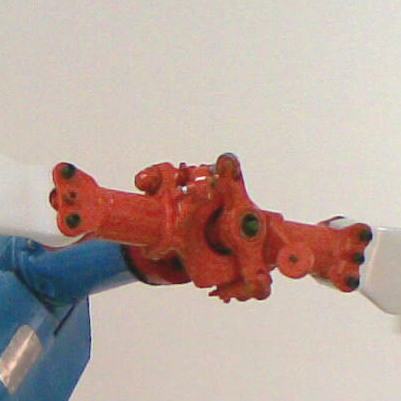

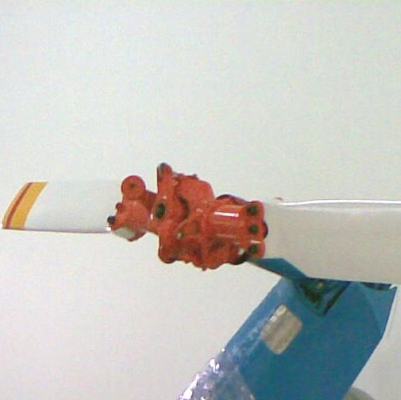

The AVIATEK Helicopter Tail Rotor System Trainer HS-23 is a Trainer System used to illustrate the concept and operations of the power transmission system in helicopter tail rotor, from the main rotor or the tail rotor powerplant and pitchlink tail rotor control system to the tail blades. It is very important to have helicopter technician to know and understand concept and operation of helicopter tail rotor including vibration of tail rotor and also routine check and maintenance of a helicopter tail rotor.

Features

  • Fully tested and ready to Plug in and Operate unit to demostrate a helicopter tail rotor power transmission.
  • Perform check and maintenance of helicopter tail rotor including pitchlink and tail blades.
  • Test, check and improve vibration levels of tail rotor
  • Instructor / User manual including student Lab. Practice
  • Include interactive CBT.


Components

  • Tail rotor shaft
  • Input: up to 6000 RPM, output: 2000 RPM
  • Pedal control to change the tail rotor pitch link

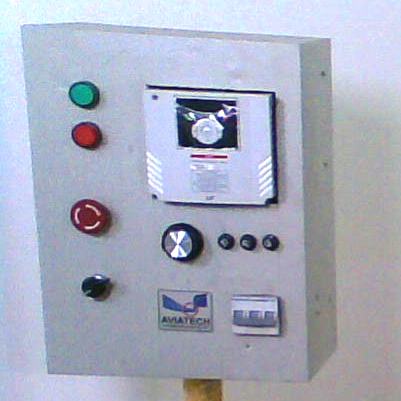

  • Control Panel: Power Switch, Speed Control, Emergency Button, Fuses, Tachometer
  • Tail rotor blade: 2 (two)
  • Standing on a workstation with caster wheel and brakes
  • Driven by electric motors 3 phase, 5 HP 380 V
  • Use helicopter part balancer.




Helicopter Transmission Gearbox Trainer HS-24

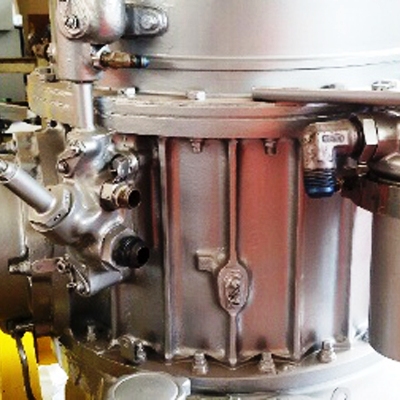

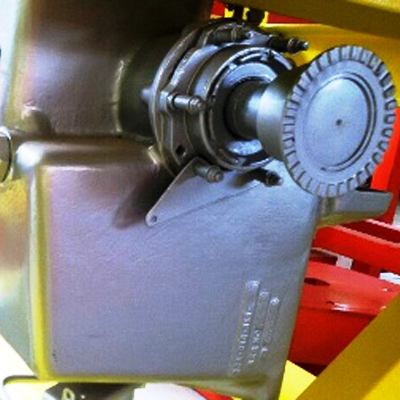

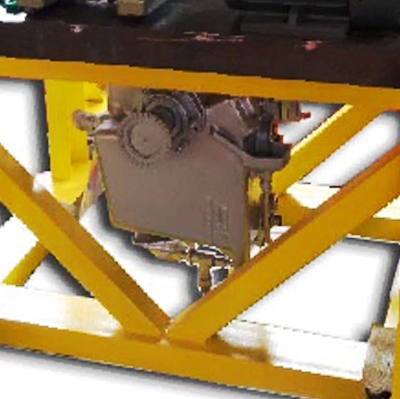

The AVIATEK Helicopter Transmission Gearbox Trainer HS-24 is a Trainer System used to illustrate the concept of a helicopter transmission gearbox, i.e. a mechanism to get the engine output (i.e. torque at a certain angular velocity) and transmit it to the main rotor at the top of helicopter and also at the same time to tail rotor at the back of helicopter with a freewheeling unit and clutch.

Features

  • A portable and ready to Plug in and Operate unit to demostrate a helicopter transmission gearbox
  • Perform check and maintenance of oil system
  • Instructor / User manual including student Lab. Practice
  • Interactive CBT.

Components

  • Input: up to 3000 rpm, output: 500 rpm

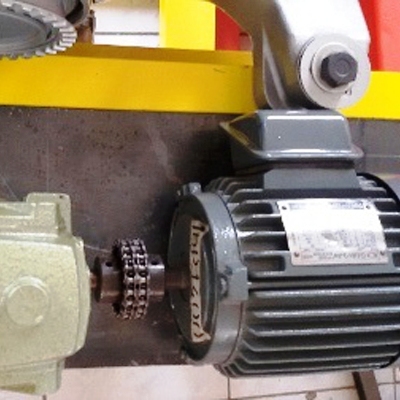

  • Simulated powerplant driven by electric motor 5 HP, 380 V 3 Ph
  • Speed Control
  • Training stand with caster wheel and brakes
